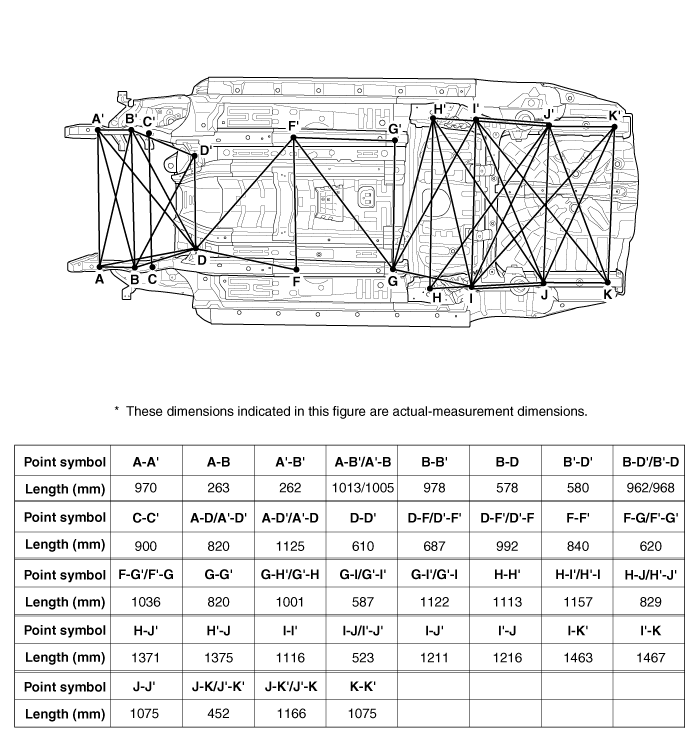

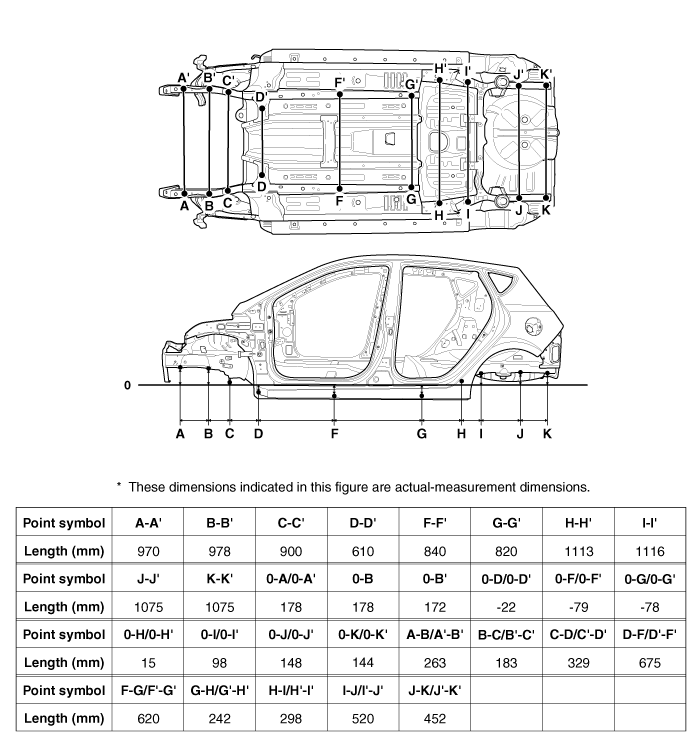

Front side member tooling hole (Ø6.6) | Side cover mounting hole (B/B’: Ø6.6/ Ø8.6) | Front sub frame mounting hole (Ø17) |
 |  |  |
Front sub frame mounting hole (Ø22) | Center floor side member tooling hole (Ø10) | Center floor side member tooling hole (Ø6) |
 |  |  |
Rear floor side member tooling hole (Ø8.8) | Rear suspension mounting hole (Ø10) | Rear suspension mounting hole (Ø10) |
 |  | |
Rear floor side member tooling hole (Ø8) | Rear floor side member tooling hole (Ø15) |
| | |
Front side member tooling hole (Ø6.6) | Side cover mounting hole (B/B’: Ø6.6/ Ø8.6) | Front sub frame mounting hole (Ø17) |
| | |
Front sub frame mounting hole (Ø22) | Center floor side member tooling hole (Ø10) | Center floor side member tooling hole (Ø6) |
| | |
Rear floor side member tooling hole (Ø8.8) | Rear suspension mounting hole (Ø10) | Rear suspension mounting hole (Ø10) |
| | |
Rear floor side member tooling hole (Ø8) | Rear floor side member tooling hole (Ø15) |
| | |

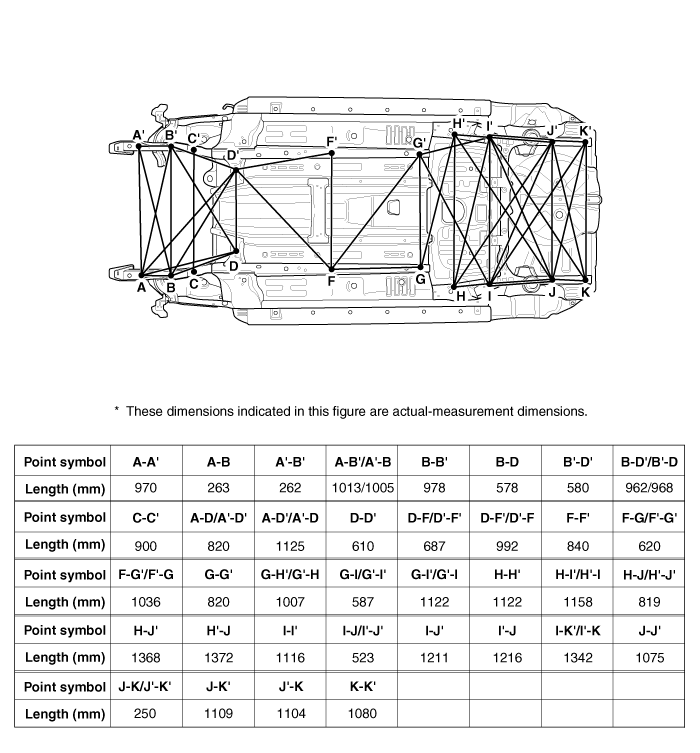

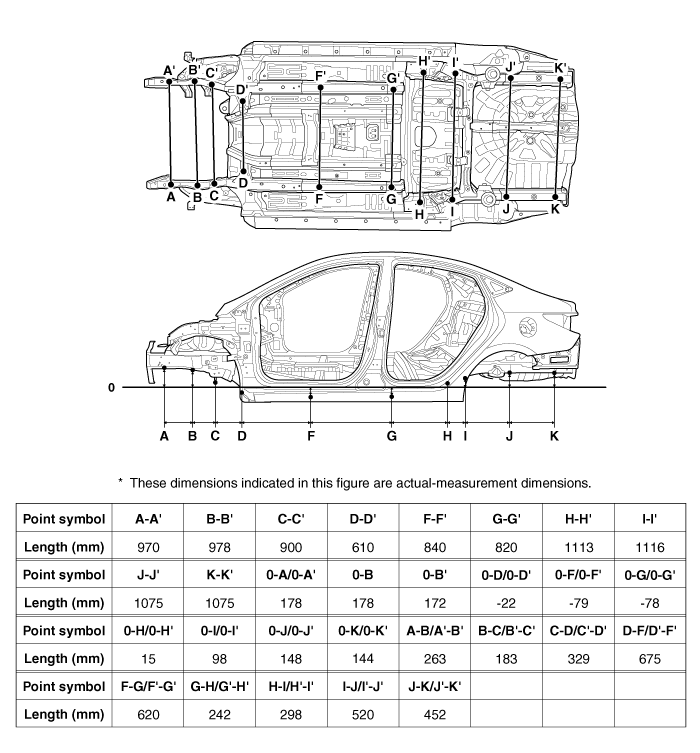

Front side member tooling hole (Ø6.6) | Side cover mounting hole (Ø8.6) | Front sub frame mounting hole (Ø19) |
 |  | |
Front sub frame mounting hole (Ø22) | Center floor side member tooling hole (Ø10) | Center floor side member tooling hole (Ø6) |
 | | |
Rear floor side member tooling hole (Ø8.8) | Rear suspension mounting hole (Ø10) | Rear suspension mounting hole (Ø10) |
| | |
Rear floor side member tooling hole (Ø8) | Rear floor side member tooling hole (Ø25) |
| | |
Front side member tooling hole (Ø6.6) | Side cover mounting hole (Ø8.6) | Front sub frame mounting hole (Ø19) |
| | |
Front sub frame mounting hole (Ø22) | Center floor side member tooling hole (Ø10) | Center floor side member tooling hole (Ø6) |
| | |
Rear floor side member tooling hole (Ø8.8) | Rear suspension mounting hole (Ø10) | Rear suspension mounting hole (Ø10) |
| | |
Rear floor side member tooling hole (Ø8) | Rear floor side member tooling hole (Ø25) |
