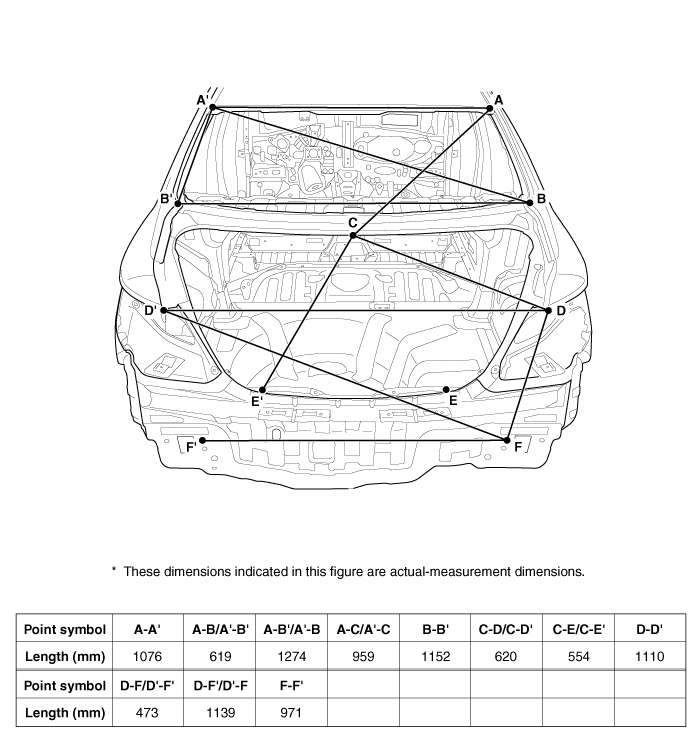

Roof panel rear corner
Side outer panel rear corner
Rear window opening frame notch
Side outer panel rear corner
Rear transverse trim mounting hole
(Ø8.5)
Rear bumper mounting hole (Ø10)
Rear bumper mounting hole (10X14)
| | |
Roof panel rear corner | Side outer panel rear corner | Rear window opening frame notch |
| | |
Side outer panel rear corner | Rear transverse trim mounting hole (Ø8.5) | Rear bumper mounting hole (Ø10) |
| ||
Rear bumper mounting hole (10X14) |
 |  |  |

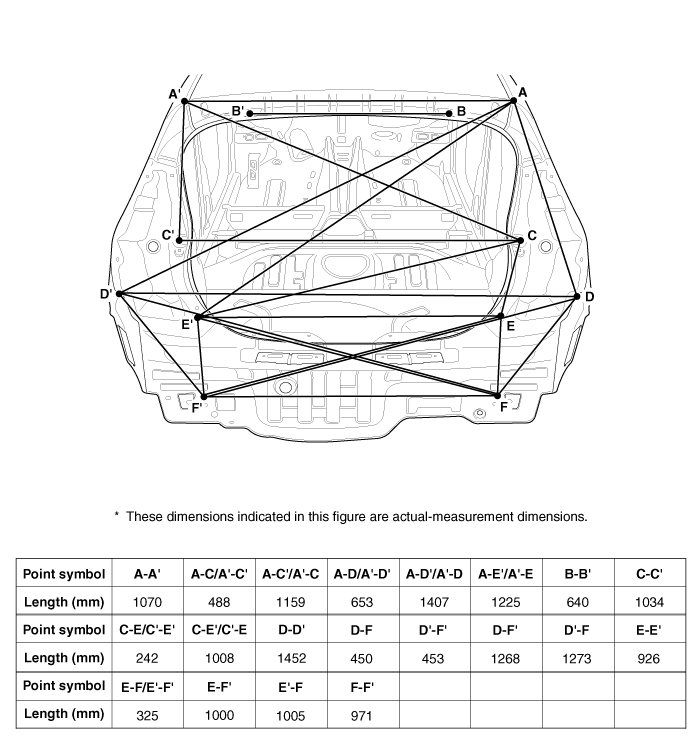

Side outer panel rear corner | Tail gate hinge mounting hole (Ø14) | Tail gate hinge mounting hole (Ø14) |
 |  |  |
Rear combination lamp mounting hole (Ø6.6) | Side outer panel rear corner | Rear bumper mounting hole (7X7) |
 |  | |
Rear bumper mounting hole (Ø10) | Rear bumper mounting hole (10X14) |
