4.
Drive the vehicle approx watching the speedometer on the instrument panel.

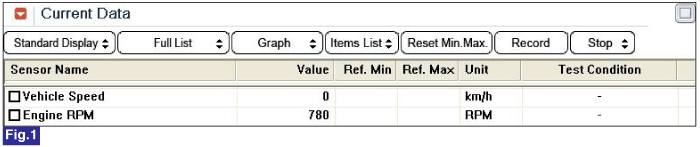

Fig.1) Stand Still (IG ON & ENG ON)
Connect scantool to Data Link Connector(DLC).
Ignition "ON" & Engine "ON".
Monitor the "VEHICLE SPEED SENSOR" parameter on the scantool.
Drive the vehicle approx watching the speedometer on the instrument panel.
Fig.1) Stand Still (IG ON & ENG ON)
Is parameter within specifications?
 | ▶ Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and EPS CM memory is not cleared yet. Thoroughly check all connectors(and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "W/Harness Inspection" procedure. |
