3.
Monitor the "Engine speed" parameters on the GDS.
Connect GDS to Data Link Connector(DLC).
Engine start.

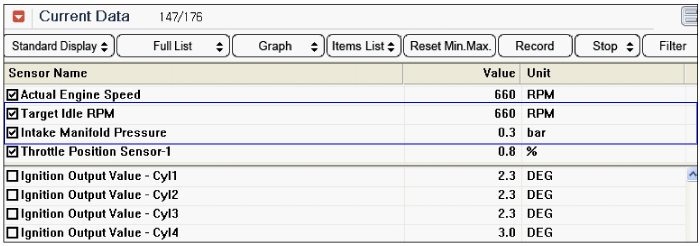

Monitor the "Engine speed" parameters on the GDS.
Are the parameters displayed correctly ?
 | ▶ Fault is intermittent caused by poor contact in the sensor’s and/or ECM’s connector or was repaired and ECMmemory was not cleared. Thoroughly check connectors for looseness, poor connec |
 | ▶ Go to "Terminal & Connector Inspection" procedure. |
