Monitor Scantool Data

1.

Connect GDS.

2.

IG "ON" and engine "OFF".

3.

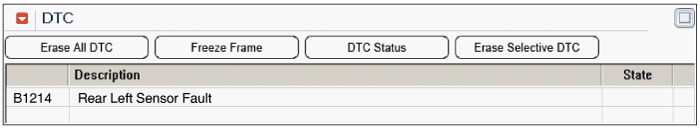

Select "DTC Analysis" mode.

4.

After erase DTC.

5.

Is the same DTC occurred again ?

	▶ Go to next procedure.
	▶ Fault is intermittent caused by poor contact in the sensor's and/or BCM[RPAS(Rear Parking Assist Module)]'s connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
