4.
Check that data is appropriately changeable according to the shift lever position in P or others.
Specification :
P position : ON
Not in P position : OFF
Connect scantool with diagnostic connector.

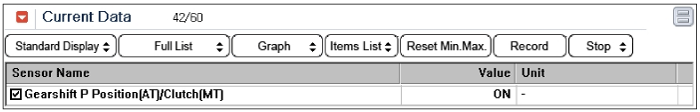

Check current data with scantool.
Check "Shift lever P position" parameter on current data.
Check that data is appropriately changeable according to the shift lever position in P or others.
Specification :
P position : ON
Not in P position : OFF
Is the shift lever P position normal ?
 | ▶ Check poor connection between harness connector and Parking Postion switch or SMK Unit : Thoroughly check the looseness, poor connection, bent, corrison, contamination, deformation or damage of connector. Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Inspection & Repair" procedure. |
