4.
Shift gear at each position.
Fig 1) "P,N"
Fig 2) "R"
Fig 3) "1st" grar
Fig 4) "2nd" gear
Fig 5) "3rd" gear
Fig 6) "4th" gear
Connect GDS to data link connector(DLC)
Engine "ON".
Monitor the "ON/OFF(SCSV-A) SOLENOID VALVE" parameter on the GDS.
Shift gear at each position.

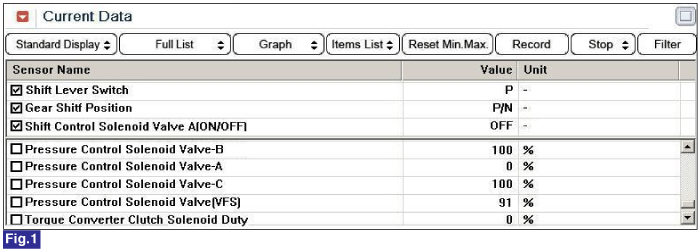

Fig 1) "P,N"

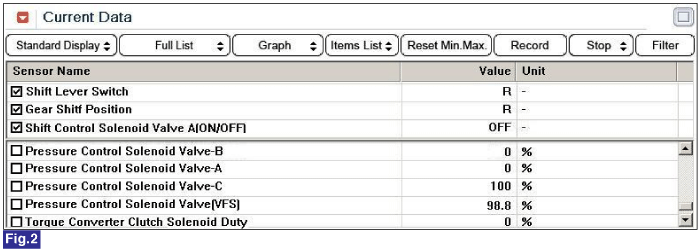

Fig 2) "R"

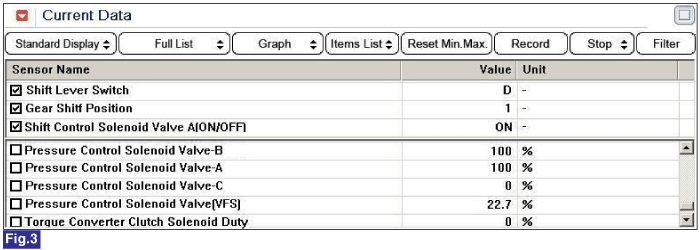

Fig 3) "1st" grar
Fig 4) "2nd" gear

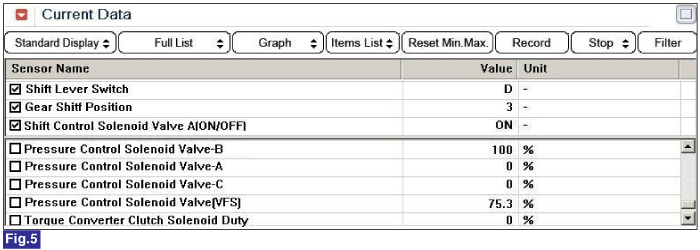

Fig 5) "3rd" gear

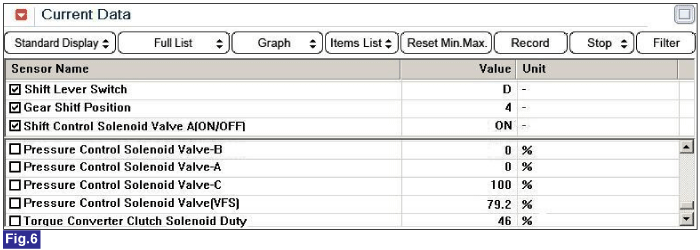

Fig 6) "4th" gear
Does "ON/OFF SOL VALVE" follow the referance data?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or TCM(PCM)'s connector or was repaired and TCM(PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure. |
 | ▶ Go to "W/Harness Inspection " procedure. |
