4.
Shift gear at each position .
Fig 1) "P,N "
Fig 2) "R"
Fig 3)"D Range1st" grar
Fig 4)"2nd" gear
Fig 5) D Range"3rd" gear
Fig 6) "D Range 4th" gear
Connect GDS to data link connector(DLC)
Engine "ON".
Monitor the "PCSV-B(2-4SOLENOID VALVE)" parameter on the GDS
Shift gear at each position .

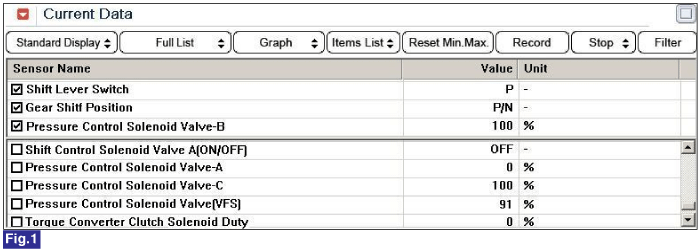

Fig 1) "P,N "

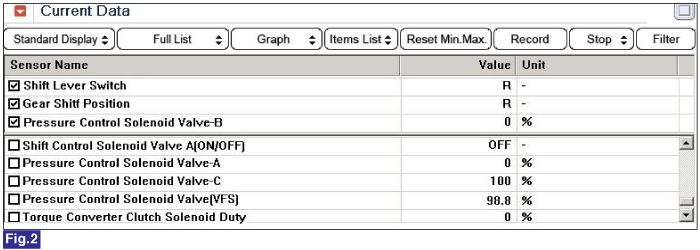

Fig 2) "R"

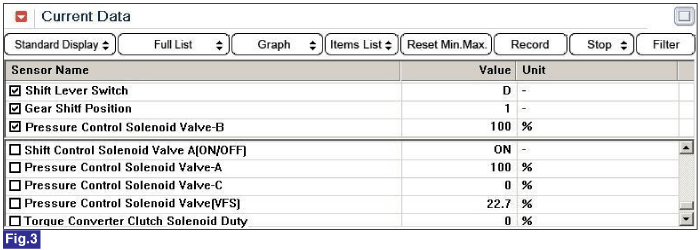

Fig 3)"D Range1st" grar

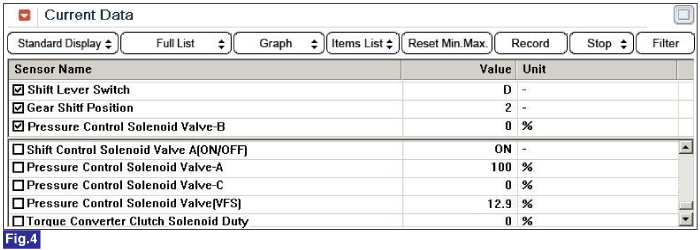

Fig 4)"2nd" gear
Fig 5) D Range"3rd" gear
Fig 6) "D Range 4th" gear
Does "PCSV-B(2-4SOLENOID VALVE)" follow the referance data?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and TCM(PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure |
 | ▶ Go to "W/Harness Inspection " procedure |
