Connect scantool to data link connector(DLC)

Ignition "ON" & Engine "OFF".

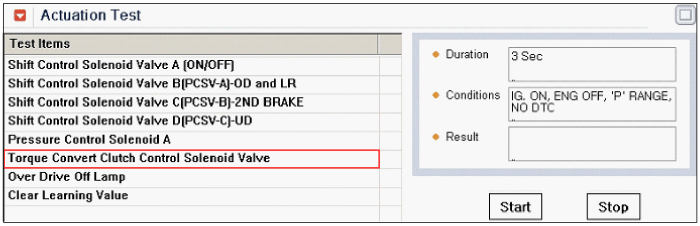

Select A/T Solenoide valve Actuator test and Operate Actuator test.

Is Actuator Testing performed normally ?

	▶ Go to "CHECK OIL PRESSURE" as below.
	▶ Replace "TCC SOLENOID VALVE" as necessary and Go to "Verification Vehicle Repair" procedure.

Connect Oil pressure guage to "DR" port.

Ignition "ON" & Engine "OFF".

After connecting GDS and monitor the "TCC SOLENIOD VALVE DUTY" parameter on the GDS data list.

Select 1st gear and accelerate Engine speed to 2500 rpm.

Measure oil pressure.

Is oil pressure value within specification?

	▶ Repair TORQUE CONVERTER CLUTCH(REPLACE Torque Converter ) as necessary and Go to "Verification Vehicle Repair " procedure.
	▶ Replace A/T ass'y (possible to BODY CONTROL VALVE faulty) as necessary and Go to "Verification Vehicle Repair " procedure.
