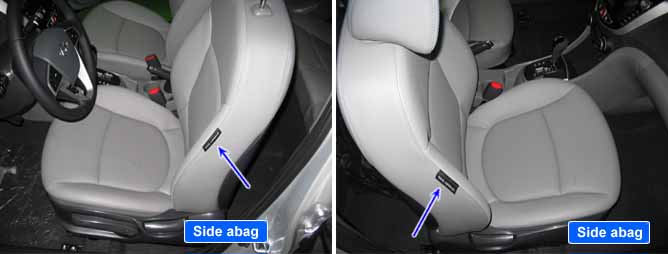

Side Airbag (hereinafter referred to SAB) located in driver and passenger seat protects passenger's head and shoulder.
SAB is consist of air bag and inflator.
Air bag reduces impact of collision by fillied up gas.
Inflator keeps gas and uses it to deploy air bag on collision.
Never measure resistance of SAB directly, Current of measuring device may cause unexpected air bag deploy.
The SRSCM sets DTC B1381 if there is a short to power in DSAB harness.
*In this case, SRSCM checks if there's any fault in circuit by sending current for a while.
Item | Detecting Condition | Possible cause | |
DTC Strategy |
•
Check Voltage | 1. Short to power in DSAB harness. 2. Poor connection of connected part. 3. Faulty DSAB. 4. Faulty SRSCM. | |
Enable Conditions |
•
Ignition "ON" | ||
Threshold Value |
•
DSAB Squib line voltage is > 3V | ||
Diagnostic Time | Qualification |
•
More than 1s (100ms x 10) | |
De-Qualification |
•
More than 2s(100ms x 20) | ||
Test Condition | Voltage |
Ignition ON | 1V ≤ Squib line Voltage ≤ 3V(When Batt 7.52~16.85V) |
