Component Inspection
General Description

Smartkey Module communicates with ECM through the serial communication line. If ECM requests authetication from Smartkey Module after IG ON, Smartkey Module check authentication with transponder then, sends this signal to ECM whether authentication is O.K or not.

DTC Description

This DTC code is to determine proper communication of ECM and SMK Unit when engine is started.The DTC is set If there is problem with data sent from ECM to SMK unit such as check sum error, Data Frame error, ID Unknown error, Data length error and Time out error.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

•

Checking Data stauts receiving from ECM

1.

Poor connection

2.

Power supply circuit in Smartkey Unit

3.

Signal noise in ECM data communication line

4.

Smartkey Unit(SMK IMMO Unit)

5.

ECM

Enable Conditions

•

Data that SMK unit received from ECM is error after IGN OFF to IGN ON

Threshold value

•

Received data error from ECM

Diagnostic Time

•

ECM detects data errors for 5 times

Diagnostic Time

•

Immediately after receiving normal data

Diagnostic Circuit Diagram
note
To view Flash content, you need to install the appropriate browser extension

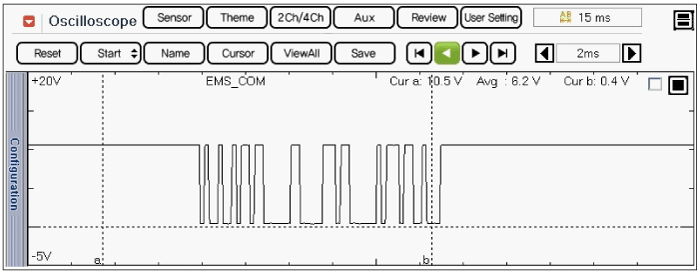

Signal Waveform & Data
