3.
Select "Current Data" mode and monitor "Engine coolant temperature sensor" parameter.

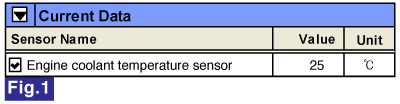

Fig.1) Parameter of "Engine coolant temperature sensor" will be fixed at 85℃(185℉), if there is any fault in incar sensor.
Vehicle Parked & Ignition ON.
Connect GDS and select "Data Analysis" mode.
Select "Current Data" mode and monitor "Engine coolant temperature sensor" parameter.
Fig.1) Parameter of "Engine coolant temperature sensor" will be fixed at 85℃(185℉), if there is any fault in incar sensor.
Is the engine coolant temperature sensor abnormal ?
 | ▶ Go to " Wiring Inspection " procedure . |
 | ▶ Fault is intermittent caused by poor contact in the sensor’s and/or Control module’s connector or was repaired and Control module’s memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. ▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
