4.
HECU calibration procedure is performed.
(Calibration records, DTC codes erasure)
The steering angle speed sensor detects the angle of the steering wheel in order to which direction a user chooses.The sensor is detached on the MPS(Mutil-Function Switch) under the steering wheel.

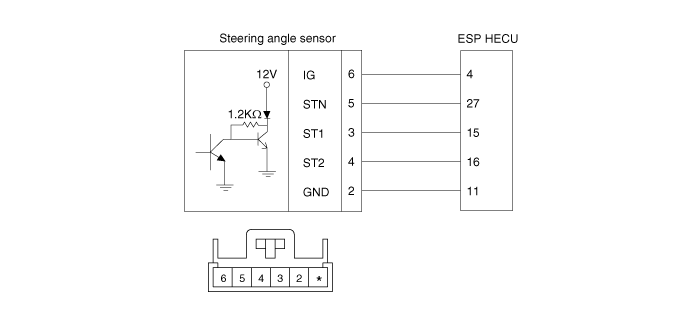

The split of the steering angle sensor detects a steering angle of the steering wheel by a ON/OFF pulse caused by whether or not the LED lights go through the hole of the split, rotating as the steering wheel revolves. There are three LEDs, two(ST1, ST2) for detecting a steering direction, and the other for the neutral position.The HECU calculates the steering angle by the pulse from the steering angle sensor.
Description | Specification |
Operating voltage | 9 ~ 16 V |
Operating temperature | -30 ~ 75 ℃ |
Current consumption | Max.100 mA |
Steering angle velocity | Max. ± 1500 °/sec |
Voltage(high) | 3.0 V ~ 4.1 V |
Voltage(low) | 1.3 V ~ 2.0 V |
Pulse duty | 40 ~ 60 % |
Steering Wheel Angle Sensor of a absolute angle type (CAN type) measures the angle under the standard of the zero angle set.
Calibration must be performed as following cases.
Replacement of the Steering Wheel Angle Speed Sensor
Replacement or repair of the Steering column
Detection of DTC codes (C1260, C1261)
Replacement of the sensor cluster
Replacement of HECU
Perform wheel alignment and stand the steering wheel in a line within ±5˚error.

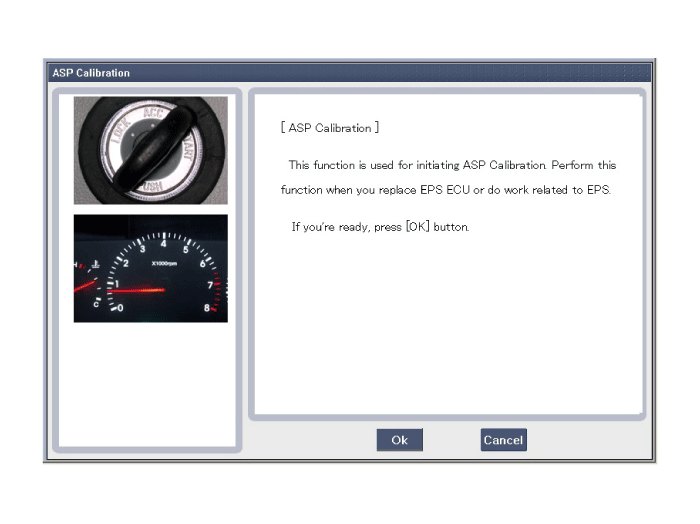

Connect the GDS.(CAN line or OBD connector)
Turn ignition switch on.
Press calibration button of the Steering Wheel Angle Sensor.
HECU calibration procedure is performed.
(Calibration records, DTC codes erasure)
Turn ignition switch off after calibration procedure.
Confirm success or failure of calibration.
Warning lamp must not be lighted when driving test (Turning left and right).
ESP lights ESP OFF warning lamp when making an error in comparison with values of other sensors.
