TCM calculates the best condition using the information from all kinds of sensors. If the solenoid valve receives the information on the oil pressure, the solenoid valve actuates according to the driving signal. All kinds of regulators in the valve body are controlled to change the oil passage and also the line pressure is controlled by TCM.

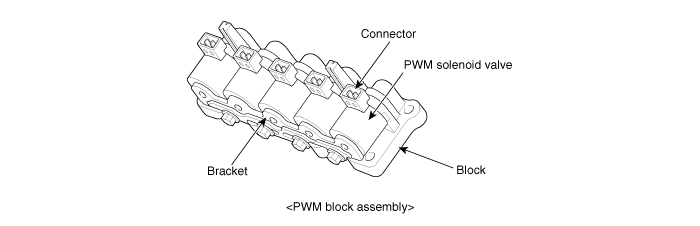

● PWM (Pulse Width Modulation) Solenoid Valve
Structure and functions
PWM solenoid valve is composed of five solenoid valves and the oil capacity in the solenoid valve is changed by the electric duty value of TCM. The oil pressure of the valve body and the torque converter engages or disengages the damper clutch. The solenoid valves send the operating oil pressure to the clutches and brakes at each range and also control the strength and weakness of oil pressure to reduce shock when shifting.
Range | PWM solenoid valve | ||||
PCSV-A (SCSV-B) | PCSV-B (SCSV-C) | PCSV-C (SCSV-D) | PCSV-D (DCCV) | ON, OFF (SCSV-A) | |
N, P | OFF | ON | ON | OFF | ON |
1st | ON | ON | OFF | OFF | ON |
2nd | ON | OFF | OFF | ON | OFF |
3rd | OFF | ON | OFF | ON | OFF |
4th | OFF | OFF | ON | ON | OFF |
Reverse | OFF | OFF | ON | OFF | ON |
LOW | OFF | ON | OFF | OFF | ON |
PWM solenoid valve is controlled linearly according to the duty ratio.
Oil pressure range:
0~4.3 kgf/cm² (0~422kpa, 0~61.2psi)
Type | 3way ＆ Normal High |
Input voltage | 12V |
Coil resistance | 3.2±0.2Ω (at 25°C, 77°F) |
Cycle | 50Hz |
