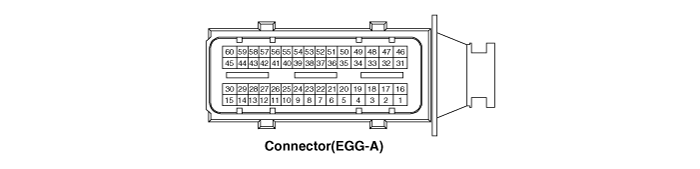

Pin | Description | Pin | Description | ||
1 | Ground output stages(ECU) | 48 | Gear information to meter cluster | ||
2 | - | 49 | Output vehicle speed | ||
3 | Ground electronic | 50 | - | ||
4 | Voltage supply for transmission (Output stages #1) | 51 | Input transmission oil temperature | ||
5 | Voltage supply for transmission (Output stages #2) | 52 |
| ||
6 |
| 53 |
| ||
7 |
| 54 |
| ||
8 |
| 55 |
| ||
9 |
| 56 |
| ||
10 |
| 57 |
| ||
11 |
| 58 |
| ||
12 |
| 59 |
| ||
13 |
| 60 | Signal for NAB(Output speed sensor) | ||
14 |
| 61 | Signal for NTU(Input speed sensor) | ||
15 |
| 62 |
| ||
16 |
| 63 | ECM(Brake light switch) | ||
17 |
| 64 | Auto cruise ON/OFF signal | ||
18 |
| 65 | OD off request form ACC | ||
19 |
| 66 | Input rever position D | ||
20 |
| 67 | Input lever position P | ||
21 | ECM(Brake sw) | 68 | Inhibitor switch L | ||
22 |
| 69 |
| ||
23 |
| 70 | Ground transmission #3 | ||
24 | Ground transmission #1 | 71 | PCSV-A(OD&LR) | ||
25 | Ground transmission #2 | 72 | PCSV-B(24 Brake) | ||
26 | ON/OFF solenoid | 73 |
| ||
27 | PCSV-D(DCCSV) | 74 |
| ||
28 |
| 75 |
| ||
29 |
| 76 |
| ||
30 |
| 77 |
| ||
31 |
| 78 |
| ||
32 |
| 79 |
| ||
33 |
| 80 | Sensor ground for transmission oil temperature sensor | ||
34 |
| 81 |
| ||
35 |
| 82 | Ground for NAB(Ground for output speed) | ||
36 |
| 83 | Ground for NTU(Ground for input speed) | ||
37 |
| 84 |
| ||
38 |
| 85 |
| ||
39 |
| 86 | Input brake switch TCM | ||
40 |
| 87 |
| ||
41 |
| 88 | Input lever position R | ||
42 |
| 89 | Inhibitor switch 2 | ||
43 |
| 90 | Inhibitor switch 3 | ||
44 |
| 91 | Input lever position N | ||
45 |
| 92 | Ground transmission #4(NC) | ||
46 |
| 93 | Linear solenoid TCM | ||
47 | Low gear information to ACC | 94 | PCSV-C(UD) | ||
