Body control module (A) receives various input switch signals controlling time and alarm functions for the door lock/unlock control, lamp control, power window timer, RPAS buzzer warning control and keyless entry.
Body control module (A) receives various input switch signals controlling time and alarm functions for the door lock/unlock control, lamp control, power window timer, RPAS buzzer warning control and keyless entry. | |
Control the following function as Door Lock/Unlock Control by Relay control.
IGN Key reminder
Crash Door Unlock
Central Door Lock/Unlock
Auto Door Lock
Auto Door Unlock
Date flow
Door Lock/Unlock Control | |
A_IGN1 | O_DRLockRly |
A_IGN2 | O_DRUnlockRly |
L_Driver door unlock switch | - |
L_Assistant door unlock switch |
|
L_RRDR(&TailGate)UnlockSW | |
- | |
L_Power window Lock switch | |
L_Power window Unlock switch | |
TX Lock | |
TX Unlock | |
L_KeyIn switch | |
L_Driver door switch | |
L_Assistant door switch | |
L_Crashinput | |
L_InhibitP | |
F_Speed sensor | |
C_SMKRKE CMD | |
C_Passive Lock | |
C_Passive Unlock | |
Overview Description
During Door Lock/Unlock output, if there is the same output command, ignore the input.
However, Crash Door Unlock is valid.
During Door Lock/Unlock output, if there is conflicted output command, off the current output at once and after 100msec delay, perform the inputted output.
However, during 100msec delay, if there is output command, perform the last output command Inputted.
If Lock output and Unlock output is triggered at the same time, perform Lock output and ignore Unlock output.
During all door actuator unlock switch is Lock, if there is Lock request, do output.
During all door actuator unlock switch is Unlock, if there is Unlock request, do output.
Central Door Lock / Unlock by Door Lock Switch
If there is Crash Door Unlock Input, regardless the operation state and perform Crash Door Unlock.
Input | Condition | Output |
Lock | L_DRVDRUnlockSW on→off || L_PwdwLockSW off→on | O_DRLockRly on for 0.5sec |
Unlock | L_DRVDRUnlockSW off→on || L_PwdwUnlockSW off→on | O_DRUnlockRly on for 0.5sec |
No Output for Lock/Unlock by Rear seat’s Safety Knob[=L_RRDR(TailGate)UnlockSW] and Assist Seat's Safety Knob[=L_ASTDRUnlockSW].
Central Door Lock/Unlock by Transmitter or FOB of Passive switch
Lock
Input | Precondition | Output |
TX Lock || C_SMKRKECMD=Lock || C_PassiveLock=On | (Key In=off || A_ACC=off) & All Door Close | Case01 If All Door Lock is checked after O_DRLockRly=on for 0.5sec then O_HazardRly=on for 1.0sec one time Case02 If All Door Lock is not checked after O_DRLockRly=on for 0.5sec then No output of O_HazardRly |
Any Door Unlock -> All Door Lock | Case02 | O_HazardRly=on for 1.0sec one time |
TX Lock || C_SMKRKECMD=Lock | Key In=off & Any Door Open | O_DRLockRly=On for 0.5sec No O_HazardRly=On |
C_PassiveLock=On | Key In=off & (L_DRVDRSW=On || L_ASTDRSW=On) | Ignore C_PassiveLock=On No O_DRLockRly=On |
C_PassiveLock=On | Key In=off & (L_DRVDRSW=Off & L_ASTDRSW=On) & (L_RLDRSW=On || L_RRDRSW=On) | O_DRLockRly=On for 0.5sec No O_HazardRly=On |
Any Door Open→ All Door Close | All Door Lock by (TX Lock || C_SMKRKECMD=Lock || C_PassiveLock=On) but Any Door Open | O_HazardRly on for 1.0sec |
Any Door Open → All Door Close | All Door Lock by (TX Lock || C_SMKRKECMD =Lock || C_PassiveLock=On) but Any Door Open & Any Door Act. State change (=Lock→Unlock) | No O_HazardRly on for 1.0sec |
Unlock
Input | Precondition | Output |
TX Unlock || C_SMKRKECMD= Unlock || C_PassiveUnlock=On | Key In=off & Any Door Open | O_DRUnlockRly=on for 0.5sec & O_HazardRly on for 0.5sec twice |
TX Unlock || C_SMKRKECMD= Unlock || C_PassiveUnlock=On | Key In=off & All Door Close | O_DRUnlockRly=on for 0.5sec & O_HazardRly on for 0.5sec twice & Start 30sec Timer |
Key In=on | In 30sec timer | Stop 30sec Timer |
All Door Close → Any Door Open | In 30sec timer | Stop 30sec Timer |
TX Unlock || C_SMKRKECMD= Unlock || C_PassiveUnlock=On | In 30sec timer | O_DRUnlockRly=on for 0.5sec & O_HazardRly on for 0.5sec twice & Restart 30sec Timer |
30sec elapsed | In 30sec timer | O_DRLockRly=on for 0.5sec & O_HazardRly=on for 1.0sec one time |
Key In
On : L_KeyInSW On || A_IGN1 On || A_IGN2 On (Non-SMK)
A_ACC On || A_IGN1 On || A_IGN2 On (SMK)
Off : L_KeyInSW Off & A_IGN1 Off & A_IGN2 Off (Non-SMK)
A_ACC Off & A_IGN1 Off & A_IGN2 Off (SMK)
All Door Close :
L_DRVDRSW=off & L_ASTDRSW=off & L_RLDRSW=off & L_RRDRSW=off & L_TrunkOpenSW(or L_TailGateSW)=off
Any Door Open :
L_DRVDRSW=on || L_ASTDRSW=on || L_RLDRSW=off || L_RRDRSW=off ||
L_TrunkOpenSW(or L_TailGateSW)=off
All Door Lock :
L_DRVDRUnlockSW=off & L_ASTDRUnlockSW=off & L_RR(&TailGate)UnlockSW=off
IGN Key Reminder
This function dose not operate if the vehicle speed is more than 3km/h.
If the state becomes Key In1 =on & L_DRVDRSW=open & L_DRVDRUnlockSW=lock, After 0.5sec perform output of O_DRUnlockRly for 1sec.
If the state becomes Key In1 =on & L_ASTDRSW=open & L_ASTDRUnlockSW=lock, After 0.5sec perform output of O_DRUnlockRly for 1sec.
Even if outputting Unlock for 1sec by 2) and 3), and if keeping Lock state, perform output of O_DRUnlockRly max. 3 times(except for 1sec output) (1sec cycle : 0.5sec on/off)
After performing 4), on the state of keeping Lock STATE, and if Door Close, O_UnlockRly=on one time.
On the state of Key In1 =on when Unlock→Lock if L_DRVDRUnlockSW’s L_DRVDRSW is Close within 0.5sec, perform O_DRUnlockRly=on for 1sec once.
On the state of Key In1 =on when Unlock→Lock if L_ASTDRUnlockSW’s L_ASTDRSW is Close within 0.5sec, perform O_DRUnlockRly=on for 1sec once.
On the state of Key In1 =on when open→close if L_DRVDRSW’s is L_DRVDRUnlockSW Unlock→Lock Close within 0.5sec, perform O_DRUnlockRly=on for 1sec once.
On the state of Key In1 =on when open→close if L_ASTDRSW’s is L_ASTDRUnlockSW Unlock→Lock Close within 0.5sec, perform O_DRUnlockRly=on for 1sec once.
The judgment for Retry output is performed at the time Retry output is starting.
(After 1.5sec from the first O_DRUnlockRly=on)
After Unlock condition, and if the condition is not kept for 0.5sec, perform O_DRUnlockRly=on However, after L_DRVDRUnlockSW or L_ASTDRUnlockSW is meeting with the condition by Unlock→Lock and after 0.5sec, and if Key In=off do not perform O_DRUnlockRly=on
T1,T3 : 0.5±0.1 sec, T2 : 1±0.1 sec, T4 : 0.5 sec Max
Key In
On : L_KeyInSW On || A_IGN1 On || A_IGN2 On (Non SMK)
A_ACC On || A_IGN1 On || A_IGN2 On (SMK)
Off : L_KeyInSW Off & A_IGN1 Off & A_IGN2 Off (Non SMK)
A_ACC Off & A_IGN1 Off & A_IGN2 Off (Non SMK)
Crash Door Unlock(=Impact Sensing Auto Door Unlock)
On the state of Key In1=On whenever L_CrashInput(PWM) is inputted, On O_DRUnlockRly [During O_DRUnlockRly output, ignore L_CrashInput signal(PWM) ]
But, from Key In1=On condition, if enter the Sleep mode, L_CrashInput should be ignored.
During O_DRUnlockRly output, even if Key In1 is On→Off, keep O_DRUnlockRly output
After O_DRUnlockRly output, if occurring L_DRVDRUnlockSW or L_ASTDRUnlockSW, L_RRDR (&TailGate)UnlockSW UNLOCK→LOCK, on O_DRUnlockRly=on for T2
On the state of CRASH DOOR UNLOCK, do not perform AUTO DOOR LOCK function.
CRASH DOOR UNLOCK function have precedence LOCK/UNLOCK controls in compliance with other function.
During CRASH DOOR UNLOCK function output and after output, ignore by the other function
But, if Key In1=Off perform the LOCK/UNLOCK controls in compliance with other function.
During L_CrashInput detected signal1(PWM) input, when Key In1=Off->On O_DRUnlockRly should be operated.
But, On the state of Key In1=Off On, if no L_CrashInput signal1(PWM) input, and then Key In1=Off->On do not perform O_DRUnlockRly.
T1 : Max 40 msec, T2 : 5±0.5 sec
L_CrashInput signal (PWM) : refer to below
Key In
On : L_KeyInSW On || A_IGN1 On || A_IGN2 On (Non-SMK)
A_ACC On || A_IGN1 On || A_IGN2 On (SMK)
Off : L_KeyInSW Off & A_IGN1 Off & A_IGN2 Off (Non-SMK)
A_ACC Off & A_IGN1 Off & A_IGN2 Off (SMK)
Auto Door Lock(Speed Sensing Auto Door Lock)
Auto Door Lock is divide by Disable, Enable(15km/h) and Enable(40km/h) and the default value is Enable(15km/h).
Division | Condition |
Default value | 15km/h |
Selection 1 | Disable |
Selection 2 | 40km/h |
On the state of A_IGN1=on, if keeping the vehicle speed as the setting vehicle speed in (1),
On O_DRLockRly=on output within T1. However, if all door is Lock state or all door is fail,
Do not perform O_DRLockRly=on output.
After O_DRLockRly=on output of (2), if one of door is unlock state, perform O_DRLockRly=on output Max.
3 times.(1sec cycle)
However, during outputting 3 times, if door is Unlock→Lock, ignore it.
After O_DRLockRly=on output, if the state is Unlock, treat the corresponding door as fail.
After door treated as fail is Unlock→Lock and if it becomes Unlock, Output O_DRLockRly=on once.
After O_DRLockRly=on output of (2), if door that the state was Lock becomes Unlock, Output O_DRLockRly=on once.
However, after O_DRLockRly=on output, even if keeping Unlock state, output O_DRLockRly=on for the corresponding door once.
If A_IGN1=off, clear door treated as fail.
On the condition of Crash Unlock, do not perform Auto Door Lock function.
T1: Max 1.5sec, T2: 0.5±0.1sec
Any door Unlock State :
On(=Any door Unlock)
: L_DRVDRUnlockSW=on || L_ASTDRUnlockSW=on || L_RR&TailGateUnlockSW=on
Off(=All door Lock)
: L_DRVDRUnlockSW=off & L_ASTDRUnlockSW=off & L_RR&TailGateUnlockSW=off
Auto Door Unlock by key out Condition
Auto Door Unlock is divided by Disable and Enable, and the default value is Enable.
Division | Condition |
Default Value | Enable |
Selection | Disable |
If setting as Enable, under condition of Any door lock, in condition of Key In1=On→Off On output of _DRUnlockRly
(However, if all unlock switch is unlock, not output.)
T1: 0.5±0.1sec
Key In
On : L_KeyInSW On || A_IGN1 On || A_IGN2 On (Non-SMK)
A_ACC On || A_IGN1 On || A_IGN2 On (SMK)
Off : L_KeyInSW Off & A_IGN1 Off & A_IGN2 Off (Non-SMK)
A_ACC Off & A_IGN1 Off & A_IGN2 Off (SMK)
Any door lock State 2 :
On (=Any door lock)
: L_DRVDRUnlockSW=off || L_ASTDRUnlockSW=off || L_RRDR(&TailGate)UnlockSW=off
Off (=All door Unlock)
: L_DRVDRUnlockSW=on & L_ASTDRUnlockSW=on & L_RRDR(&TailGate)UnlockSW=on
Central Door Unlock Inhibition by Power Window Lock Switch
See the below Central Door Unlock Inhibition entry condition.
From All Door Close1 condition, in case of All Door Lock2 and O_HazardRly output on by Transmitter.
From Any Door Open2 after All Door Lock3 by Transmitter. In case of All Door Close1 and O_HazardRly output on condition
After Central Unlock output performed by Transmitter. In case of All Door Lock2 by 30sec timer
(Refer to Central Lock: "Central Door Lock/Unlock by Transmitter by 30sec timer spec")
Under the condition of Central Door Unlock Inhibition. If L_PwdwUnlockSW=off->on signal inputted ignore the this signal
(There is no O_DRUnlockRly=on output by L_PwdwUnlockSW=on)
Even if Central Door Unlock Inhibition, normally should be performed for below input signal
O_DRUnlockRly=on by L_DRVDRUnlockSW=off->on || L_ASTDRUnlockSW=off->on
O_DRLockRly=on by L_PwdwLockSW=off->on
See the below Central Door Unlock Inhibition status cancellation condition.
Any Door Unlock4 by Transmitter
Any Door Unlock4 by L_DRVDRUnlockSW=off->on || L_ASTDRUnlockSW=off->on ||
L_RRDR(&TailGate)UnlockSW=off->on.
Key In=On4
All Door Close : L_DRVDRSW=Off & L_ASTDRSW=Off & L_RLDRSW=Off & L_RRDRSW=Off &
(L_TrunkSW=off || L_TailGateSW=off)
All Door Lock :L_DRVDRUnlockSW=off & L_ASTDRUnlockSW=off &
L_RRDR(&TailGate)UnlockSW=off
Any Door Unlock : L_DRVDRUnlockSW=on || L_ASTDRUnlockSW=on ||
L_RRDR(&TailGate)UnlockSW=on
Key In=on : L_KeyInSW On || A_IGN1 On || A_IGN2 On (Non SMK type)
A_ACC On || A_IGN1 On || A_IGN2 On (SMK type)
Passive Key Reminder Unlock (SMK)
This function dose not operate if the vehicle speed is more than 3km/h.
When receiving C_PassiveUnlock=PIC_Key_Reminder signal, ouput ALL DOOR UNLOCK for 1sec.
Even if outputting Unlock by (2), and if keeping Lock state, perform output of UNLOCK max. 3 times(except for 1sec output). (1sec cycle : 0.5 sec on/off).
T1 : 1±0.1sec, T2 : 0.5±0.1sec
Trunk Release Relay Control
ALL DOOR UNLOCK*
On : L_DRVDRUnlockSW=On & L_ASTDRUnlockSW=On & L_RRDR(&TailGate)UnlockSW=On
Off : L_DRVDRUnlockSW=Off || L_ASTDRUnlockSW=Off || L_RRDR(&TailGate)UnlockSW=Off
H2*
Hazard Relay 2 time(s) activity (1cycle=1Hz duty ratio 50)
ANY DOOR OPEN
: L_DRVDRSW=On || L_ASTDRSW=On || L_RLDRSW=On || L_RRDRSW=On || L_TailGateSW=On
ALL DOOR CLOSE
: L_DRVDRSW=Off & L_ASTDRSW=Off & L_RLDRSW=Off & L_RRDRSW=Off &
L_TailGateSW=Off
ANY DOOR LOCK
: L_DRVDRUnlockSW=Off || L_ASTDRUnlockSW=Off || L_RRDR(&TailGate)UnlockSW=Off
AUTOLOCKTIMER1
: In state ALL Entrance close,30 sec timer by C_SMKRKECMD=0x02(Unlock) or C_PassiveUnlock
Tailgate TIMER
: 30 sec timer by C_SMKRKECMD=TailGate(0x03) or C_PassiveTrunk_TG
KeyIn=On
: A_ACC On || A_IGN1 On || A_IGN2 On
KeyIn=Off
: A_ACC Off & A_IGN1 Off & A_IGN2 Off
Central Lock / Central Unlock
: Refer to 4.
H1*
: O_HazardRly=on for 1.0sec one time
Trunk(or Tail Gate) Release Relay Control Data Flow
Input | Output |
C_TrunkTG_LIDSW | O_Trunk(or TailGate)ReleaseRly |
C_SMKRKECMD | O_HazardRly |
C_PassiveTrunk_TG |
|
F_SpeedSNSR |
|
L_DRVDRSW |
|
L_ASTDRSW |
|
L_RLDRSW |
|
L_RRDRSW |
|
L_TailGateSW |
|
L_DRVDRUnlockSW |
|
L_ASTDRUnlockSW |
|
L_RRDR(&TailGate)Unlocksw |
|
A_ACC |
|
A_IGN1 |
|
A_IGN2 |
|
Trunk release relay control(only 4DR SMK)
If receiving C_SMKRKECMD=Trunk(0x03) or C_PassiveTrunk_TG=On(0x01) signal, turn on H2* and O_Trunk release relay for T1.
In state ALL Door unlock condition, if receiving C_TrunkTG_LID switch signal, turn on O_Trunk Release relay for T1.
Tail Lamp Auto Cut (Battery Saver)
Upon input, control Tail Lamp.
Data Flow
Input | Output |
L_TailLampSW | O_TailLampRly |
L_KeyInSW |
|
A_IGN1 |
|
A_IGN2 |
|
L_DRVDRSW |
|
A_ACC |
Behavior For Normal State
C00: L_TailLampSW=on & Key In=off 1 // O_TailLampRly=on
L_TailLampSW=on & Key In=on 1 // O_TailLampRly=on & TailAutoCutEnable=on
C01: L_TailLampSW=off // O_TailLampRly=off & TailAutoCutEnable=off
C02: L_TailLampSW=off // TailAutoCut=off
C03: TailAutoCutEnable=on & Key In=off 1 & L_DRVDRSW=on
// O_TailLampRly=off & TailAutoCutEnable=off & TailAutoCut=on
C04: TailAutoCut=on & Key In=on 1
// O_TailLampRly=on & TailAutoCutEnable=on & TailAutoCut=off
Key In 1 :
On : L_KeyInSW=on || A_IGN1=on || A_IGN2=on
Off : L_KeyInSW=off & A_IGN1=off & A_IGN2=off
If Battery connect->disconnect on 3 type MODE [Tail Lamp on, Tail Lamp off, Auto Cut] above,Keep the previous Mode.

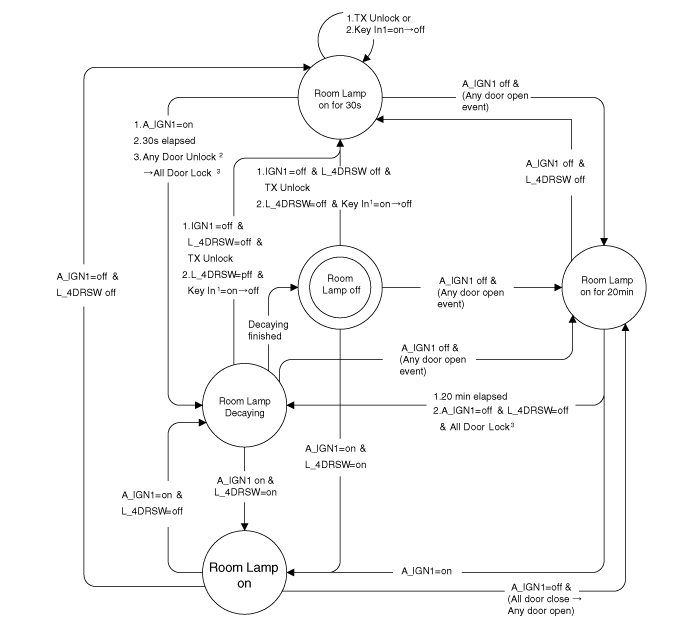

Delay Out Interior Lamp
On the state of A_IGN1=off, if L_4DRSW=on, Room Lamp is on, And if L_4DRSW=off, Room lamp is off after 30sec delay.
Under L_4DRSW=off, in case of A_IGN1=off & (Key In1 on→off), Room lamp is Off after 30sec delay.
Data Flow
INPUT | OUTPUT |
L_4DRSW | O_RoomLamp |
L_KeyInSW |
|
A_IGN1 |
|
A_IGN2 |
|
TX Unlock |
|
L_DRVDRUnlockSW |
|
L_ASTDRUnlockSW |
|
L_RRDR(&TailGate)UnlockSW |
|
A_ACC | |
C_SMKRKECMD | |
C_PassiveUnlock |
Behavior For Normal State
In case of BAT. Connect → disconnect, if IGN1=on & Any door open ,transit to Room Lamp on(100%) Mode.
In case of BAT. Connect → disconnect, IGN1=off & Any door open , transit to Room Lamp on for 20 min Mode.
In case of BAT. Connect → disconnect, if All door close, transit to Room Lamp off Mode.
Key In
On : L_KeyInSW On (Non SMK)
A_ACC On (SMK)
Off : L_KeyInSW Off (Non SMK)
A_ACC Off (Non SMK)
UNLOCK : TX Unlock, C_SMKRKECMD(Unlock), C_PassiveUnlock
Any Door Open : L_DRVDRSW=On || L_ASTDRSW=On || L_RLDRSW=On || L_RRDRSW=On
All Door Close : L_DRVDRSW=Off & L_ASTDRSW=Off & L_RLDRSW=Off & L_RRDRSW=Off
All Door Lock :
L_DRVDRUnlockSW=off & L_ASTDRUnlockSW=off & L_RRDR(&TailGate)UnlockSW=off
Any Door Unlock:
L_DRVDRUnlockSW=on || L_ASTDRUnlockSW=on || L_RRDR(&TailGate)UnlockSW=on
Description of State
Room Lamp Off
State | Description |
Initial Condition | Room Lamp Decaying |
Event | Decay finished |
Action | Enter Room Lamp off |
Room Lamp On
State | Description |
Initial Condition | Room Lamp off |
Event | A_IGN1=on & Any door open |
Action | Enter Room Lamp on |
State | Description |
Initial Condition | Room Lamp Decaying |
Event | A_IGN1=on & Any door open |
Action | Enter Room Lamp on |
State | Description |
Initial Condition | Room Lamp on for 20min |
Event | A_IGN1=on |
Action | Enter Room Lamp on |
Room Lamp On for 30s
State | Description |
Initial Condition | Room Lamp on for 30s |
Event | TX Unlock or Key In 1=on→off |
Action | Restart Room Lamp on for 30s |
State | Description |
Initial Condition | Room Lamp on |
Event | A_IGN1=off & All door close |
Action | Start Room Lamp on for 30s |
The flickering of lamp is not allowed even though IGN1 ON.
The resolution of Decayed Room Lamp must be more than 32 step.
State | Description |
Initial Condition | Room Lamp on for 20min |
Event | A_IGN1=off & All door close |
Action | Start Room Lamp on for 30s |
State | Description |
Initial Condition | Room Lamp Decaying |
Event | 1. Key In1=off & All door close & TX Unlock 2. All door close & Key In1=off |
Action | Start Room Lamp on for 30s |
State | Description |
Initial Condition | Room Lamp off |
Event | 1. Key In1=off & All door close & TX Unlock 2. All door close & Key In1=off |
Action | Start Room Lamp on for 30s |
Room Lamp Decaying
State | Description |
Initial Condition | Room Lamp on for 30s |
Event | 1.A_IGN1=on 2.30s elapsed 3.Any Door Unlock2→All Door Lock3 |
Action | Start Room Lamp Decaying |
State | Description |
Initial Condition | Room Lamp on |
Event | 1. A_IGN1=on 2. All door close |
Action | Start Room Lamp Decaying |
State | Description |
Initial Condition | Room Lamp on for 20min |
Event | 1.20min elapsed 2.A_IGN1=off & All door close & All Door Lock3 |
Action | Start Room Lamp Decaying |
Room Lamp On for 20 ms
State | Description |
Initial Condition | Room Lamp off |
Event | A_IGN1=off & Any door open event |
Action | Start Room Lamp on for 20min |
State | Description |
Initial Condition | Room Lamp Decaying |
Event | A_IGN1=off & Any door open event |
Action | Start Room Lamp on for 20min |
State | Description |
Initial Condition | Room Lamp on for 30s |
Event | A_IGN1=off & Any door open event |
Action | Start Room Lamp on for 20min |
State | Description |
Initial Condition | Room Lamp on |
Event | A_IGN1=off & Any door open event |
Action | Start Room Lamp on for 20min |
Data flow
INPUT | OUTPUT |
A_ACC | O_InteriorLampAutocutRly |
A_IGN1 |
|
A_IGN2 |
|
L_KeyInSW |
|
TX Lock |
|
TX Unlock |
|
C_SMKRKECMD |
|
C_PassiveLock |
|
C_PassiveUnlock |
|
L_DRVDRUnlockSW |
|
L_ASTDRUnlockSW |
|
L_RRDR(&TailGate)UnlockSW |
|
Overview description
C00: If (A_ACC =ON or A_IGN1=ON or A_IGN2=ON) or (ARM Mode ->DISARM Mode ) or (TX Unlock or Passive Unlock or SMKRKECMD Unlock) or ANY DOOR OPEN event
C01: If (A_ACC=OFF & A_IGN1= OFF & A_IGN2 =OFF)
Then Start 20mins timer
C02: If (DISARM Mode->ARM Mode)
Then Start 3sec timer
C03: If 3sec timer elapsed
Then O_InteriorLampAutoCutRly=OFF
C04: If 20mins timer elapsed
Then O_InteriorLampAutoCutRly=OFF
C05: If (A_ACC=ON or L_IGN1=ON or L_IGN2=ON) or (ARM Mode->DISARM Mode) or (L_KeyInSW=ON→OFF) or (TX Unlock or Passive Unlock or SMK FOB Unlock) or ANY DOOR OPEN event
Then O_InteriorLampAutoCutRly=ON and 20mins timer stop and 3sec timer stop
O_InteriorlampAutocutRly
A) Interior Lamp Autocut OFF state : O_InteriorLampAutoCutRly=OFF
B) Interior Lamp autocut ON state : O_InteriorLampAutoCutRly=ON
C) 20mins timer state : O_InteriorLampAutoCutRly=ON
D) 3sec timer state : O_InteriorLampAutoCutRly=ON
When removing and installing the battery, previous mode history
A) Interior Lamp Autocut OFF state : Starting with Interior Lamp Autocut OFF state
B) Interior Lamp Autocut ON state : Starting with Interior Lamp Autocut ON state
C) 20mins timer state : Starting with 20mins timer state
D) 3sec timer state : Starting with Interior Lamp Autocut ON state
SMK type Only
ARM Mode : ALL DOOR CLOSE & ALL DOOR LOCK BY (TX Lock or Passive Lock or SMKRKECMD Lock)
DISARM Mode : TX Lock or Passive Lock or SMKRKECMD Lock)
ANY DOOR OPEN event : L_DRVDRSW=OFF→ON || L_ASTDRSW=OFF→ON || L_RLDRSW=OFF→ON || L_TailGateSW=OFF→ON
If A_IGN1=on, On Power Window Relay output.
If A_IGN1=off, Extend Power Window Relay output for 30sec.
However, during extension output, if driver door or passenger door is opened, stop output.
Date Flow
Power Window Control | |
Input | Output |
A_IGN1 | O_PwdwRly |
L_DRVDRSW | O_Safety ECU enable |
L_ASTDRSW |
|
Behavior for Normal State
T1 : 30 sec
* Power window output
: O_PwdwRly & O_Safety Pwdw ECU
