Inspection
1.

Disconnect the negative (-) battery terminal.

2.

Remove the front door trim panel.

(Refer to Body - "Front Door")

3.

Disconnect the connector from the power window switch module.

4.

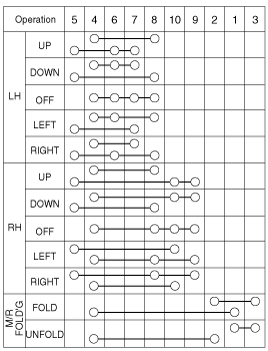

Check for continuity between the terminals in each switch position according to the table.

[Power Mirror Switch - With Folding mirror]
[Power Mirror Switch - Without Folding mirror]
