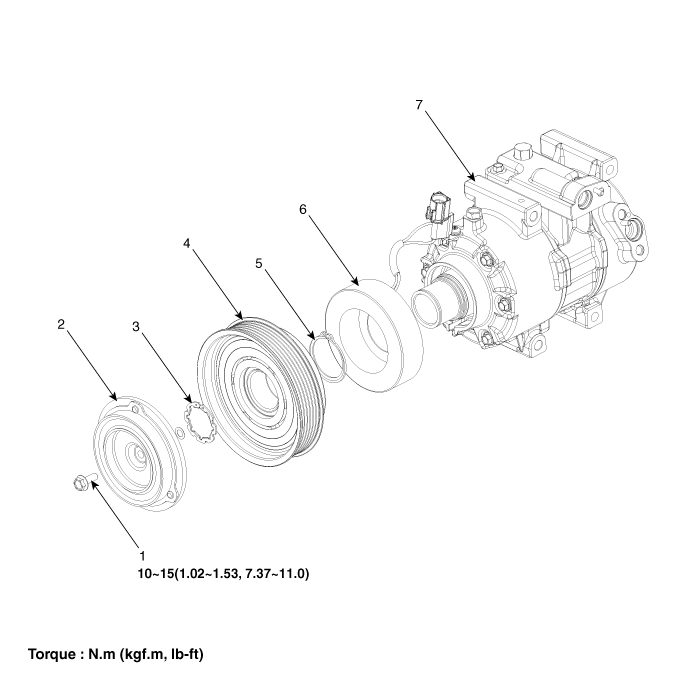

Components (DV 12 Type)

1. Blot

2. Disc & Hub Assembly

3. Retainer Ring (Pull)

4. Pulley

5. Retainer Ring (Field coil)

6. Field Coil

7. Compressor Assembly

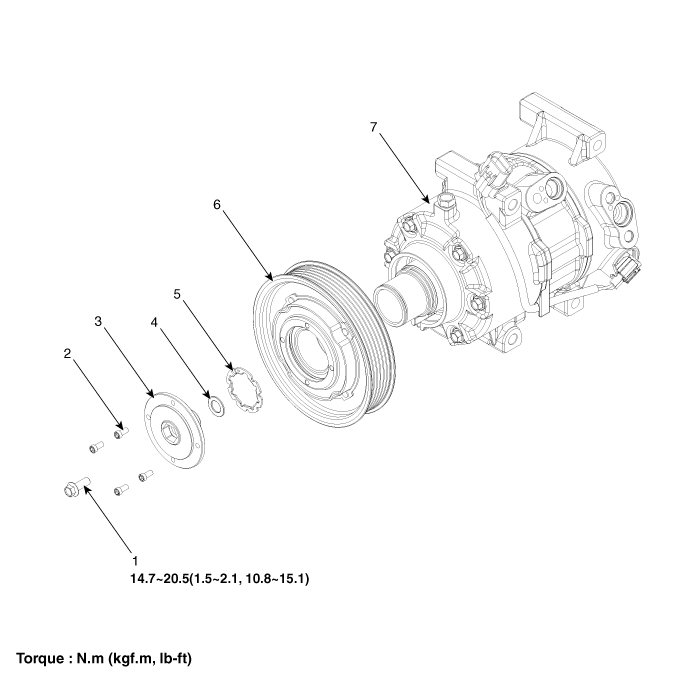

Components (DVE 12 Type)

1. Blot

2. Hub bolt

3. Sub hub

4. Shim

5. Retainer Ring

6. Pulley

7. Compressor Assembly
