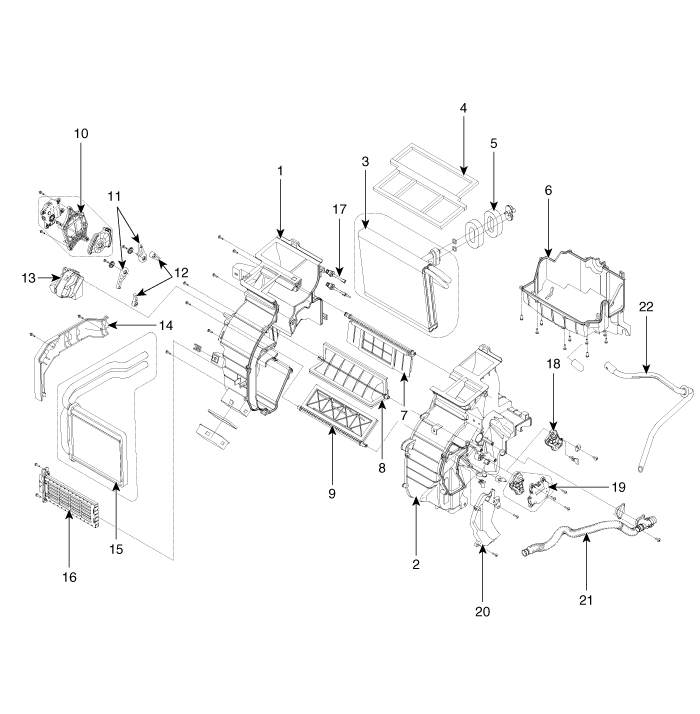

1. Heater Case (LH)

2. Heater Case (RH)

3. Evaporator Core

4. Duct Seal

5. Flange Seal

6. Lower Hearer Seal

7. Vent. Def Door

8. Foot Door

9. Temp Door

10. Mode Actuator

11. Vent Sub Lever

12. Vent Lever

13. Shower Duct (LH)

14. Heater Core Cover

15. Heater Core

16. PTC Hearer

17. Evaporator Sensor

18. Main Temp Lever

19. Temp Actuator

20. Shower Duct (RH)

21. Aspirator hose

22. Drain hose
