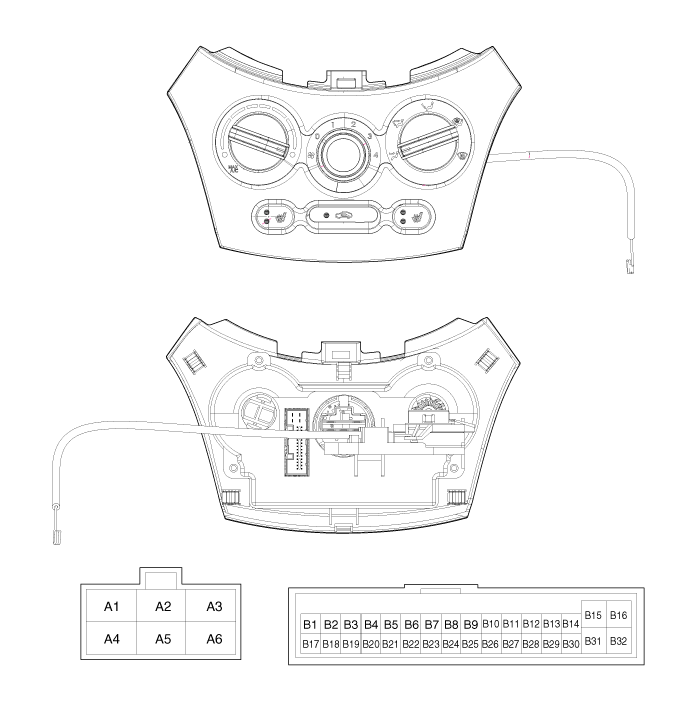

Connector | Pin NO | Function | Connector | Pin NO | Function |
Connector(A) | 1 | Middle High | Connector(B) | 1 | Tail (+ILL) |
2 | - | 2 | Battery | ||
3 | GND | 3 | A/C Output Signal (High) | ||
4 | High | 4 | A/C Select Signal (High) | ||
5 | Middle Low | 5 | Mode Actuator (VENT) | ||
6 | Low | 6 | Mode Actuator (DEF) | ||
|
| 7 | Mode Actuator (F/B) | ||
|
| 8 | Intake Actuator (FRE) | ||
|
| 9 | Intake Actuator (REC) | ||
|
| 10 | Intake Actuator (F/B) | ||
|
| 11 | REF (+5V) | ||
|
| 12 | A/C Signal (To control) | ||
|
| 13 | A/C Indicator (TO A/C Switch) | ||
|
| 14 | Speed Signal | ||
|
| 15 | Blower F/B Signal | ||
|
| 16 | Rheostat (ILL-) | ||
|
| 17 | IG2 | ||
|
| 18 | Detent Out (+) | ||
|
| 19 | Eva Sensor (+) | ||
|
| 20 | Blower Signal (-) | ||
|
| 21 | PTC Relay2 | ||
|
| 22 | PTC Relay3 | ||
|
| 23 | Blower Select (LOW) | ||
|
| 24 | PTC ON Signal (LOW) | ||
|
| 25 | Seat Warmer Signal (LH) | ||
|
| 26 | Seat Warmer LOW IND(LH) | ||
|
| 27 | Seat Warmer HIGH IND(LH) | ||
|
| 28 | Seat Warmer Signal (RH) | ||
|
| 29 | Seat Warmer LOW IND(RH) | ||
|
| 30 | Seat Warmer HIGH IND(RH) | ||
|
| 31 | Sensor GND | ||
|
| 32 | GND |
