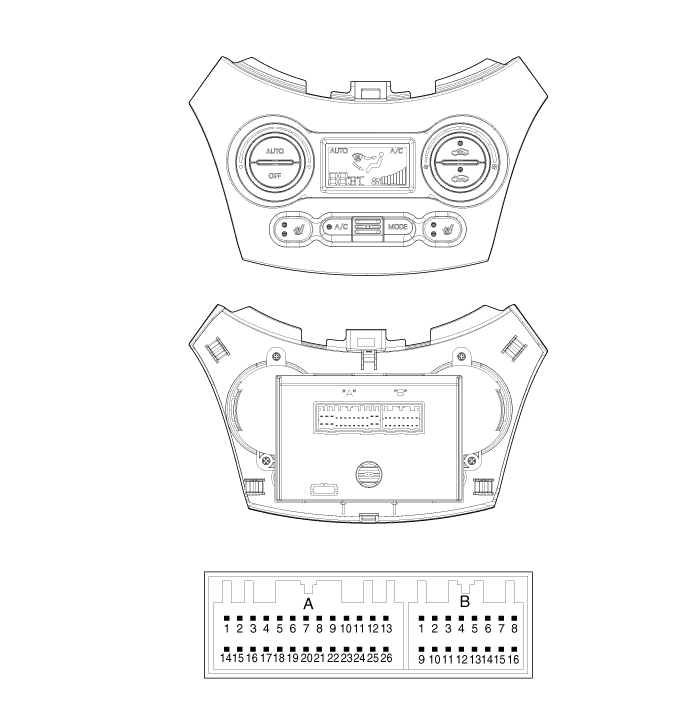

Connector | PIN NO | Function | Connector | PIN NO | Function |
Connector(A) | 1 | Battery (+) | Connector(B) | 1 | Evaporator Sensor (+) |
2 | Tail Lamp (ILL+) | 2 | Detent Out (+) | ||
3 | IGN2 | 3 | Seat Warmer Signal (LH) | ||
4 | Power Mosfet (GATE) | 4 | Seat Warmer Signal (RH) | ||
5 | Mode Actuator (VENT) | 5 | Ambient Sensor (+) | ||
6 | Mode Actuator (DEF) | 6 | HI – Scan (K-Line) | ||
7 | Temp Actuator (COOL) | 7 | Chassis CAN (LOW) | ||
8 | Temp Actuator (WARM) | 8 | Chassis CAN (HIGH) | ||
9 | Intake Actuator (FRE) | 9 | Photo Sensor (+) | ||
10 | Intake Actuator (REC) | 10 | Photo Sensor (-) | ||
11 | Def Signal (From Def Swetch) | 11 | Seat Warmer LOW Indicator (LH) | ||
12 | Def Indicator | 12 | Seat Warmer HIGH Indicator (LH) | ||
13 | Rheostat (-) | 13 | Seat Warmer LOW Indicator (RH) | ||
14 | Vref (+5V) | 14 | Seat Warmer HIGH Indicator (RH) | ||
15 | Blower Motor (+) | 15 | - | ||
16 | Power Mosfet (DRAIN F/B) | 16 | GND | ||
17 | Mode Actuator F/B |
|
| ||
18 | Temp Actuator F/B |
|
| ||
19 | Intake Actuator F/B |
|
| ||
20 | ECV IN |
|
| ||
21 | ECV OUT |
|
| ||
22 | PTC ON Signal (LOW) |
|
| ||
23 | PTC Relay 2 |
|
| ||
24 | PTC Relay 3 |
|
| ||
25 | GND |
|
| ||
26 | Sensor GND |
|
|
