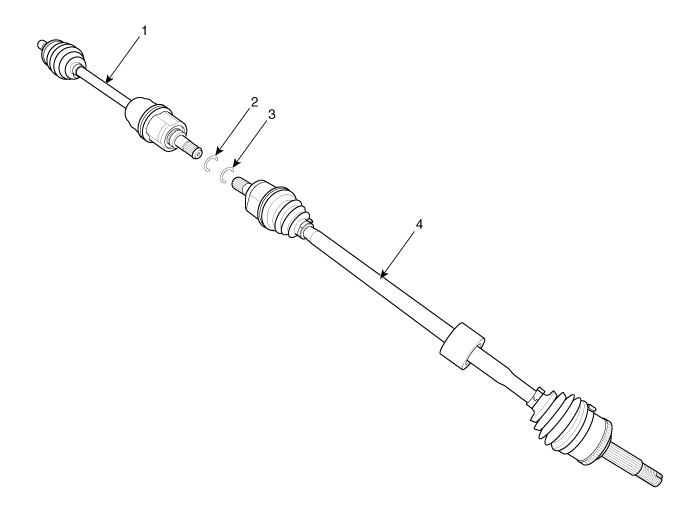

Component location

1. Driveshaft (LH)

2. Circlip

3. Circlip

4. Driveshaft (RH)

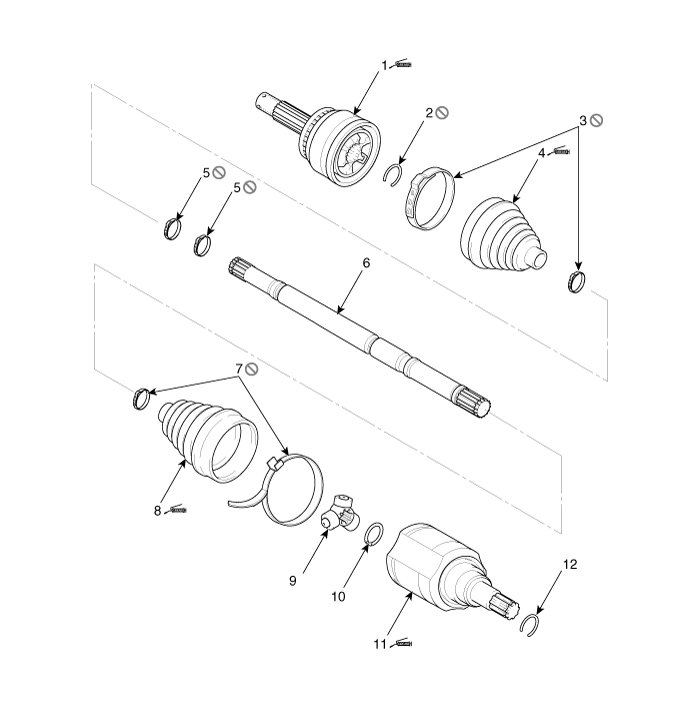

Components

1. BJ assembly

2. BJ circlip

3. BJ boot band

4. BJ boot

5. Dynamic damper band

6. Shaft

7. TJ boot band

8. TJ boot

9. Spider assembly

10. Snap ring

11. TJ case

12. Snap ring
