1.
Using a screwdriver or remover, remove the cluster fascia panel (A).
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Using a screwdriver or remover, remove the cluster fascia panel (A).
Disconnect the connector (A).
After loosening the mounting screws, then remove the cluster (A).
Disconnect the connectors (A).
Installation is the reverse of removal.
Make sure the connector is plugged in properly.
Replace any damage clips.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Using a screwdriver or remover, remove the center facia panel (A).
Installation is the reverse of removal.
Replace any damage clips.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Using a screwdriver or remover, remove the crash pad side cover (A).
Using a screwdriver or remover, remove the fuse box cover (A).
After loosening the mounting bolts and screws, then remove the crash pad lower panel (A).
Disconnect the connectors (A).
Disconnect the diagnosis connector (A) and hood release handle cable (B).
Installation is the reverse of removal.
Replace any damage clips.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Using a screwdriver or remover, remove the center facia panel (A).
After loosening the mounting screws, then remove the audio assembly (A).
Disconnect the connectors.
Disconnect the connectors (A).
Installation is the reverse of removal.
Make sure the connector is plugged in properly.
Replace any damage clips.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Using a screwdriver or remover, remove the center facia panel (A).
After loosening the mounting screws, then remove the audio assembly (A).
Disconnect the connectors.
Disconnect the connectors (A).
Using a screwdriver or remover, remove the heater control unit (A).
Disconnect the connectors (A) and hose (B).
Installation is the reverse of removal.
Make sure the connector is plugged in properly.
Replace any damage clips.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Using a screwdriver or remover, remove the crash pad side cover (A).
Disconnect the guide (B) from the glove box (A).
Disconnect the pin (A) and then remove the glove box (B).
After loosening the mounting bolt, nut, screws, then remove the glove box housing (A).
Installation is the reverse of removal.
Replace any damage clips.
After loosening the mounting screws, then remove the shroud assembly (A).
Installation is the reverse of removal.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Using a screwdriver or remover, remove the crash pad side cover (A).
Installation is the reverse of removal.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Remove the following items.
Front seat
(Refer to the BD group – “Front Seat”)
Front pillar trim
(Refer to the BD group – “Interior Trim”)
Floor console assembly
(Refer to the BD group – “Console”)
Cluster fascia panel & Cluster assembly
Center fascia panel
Glove box & Glove box housing
Audio assembly
Heater control unit
Crash pad side cover
Front door scuff trim
(Refer to the BD group- Interior Trim”)
Crash pad lower panel
Steering column
(Refer to the ST group - "Steering Column and Shaft")
Using a screwdriver or remover, remove the start stop button (A).
Disconnect the start stop button connector (B).
Disconnect the passenger`s airbag connectors (A).
Loosen the mounting bolts.
Using a screwdriver or remover, remove the photo sensor (A).
Disconnect the photo sensor connector (B).

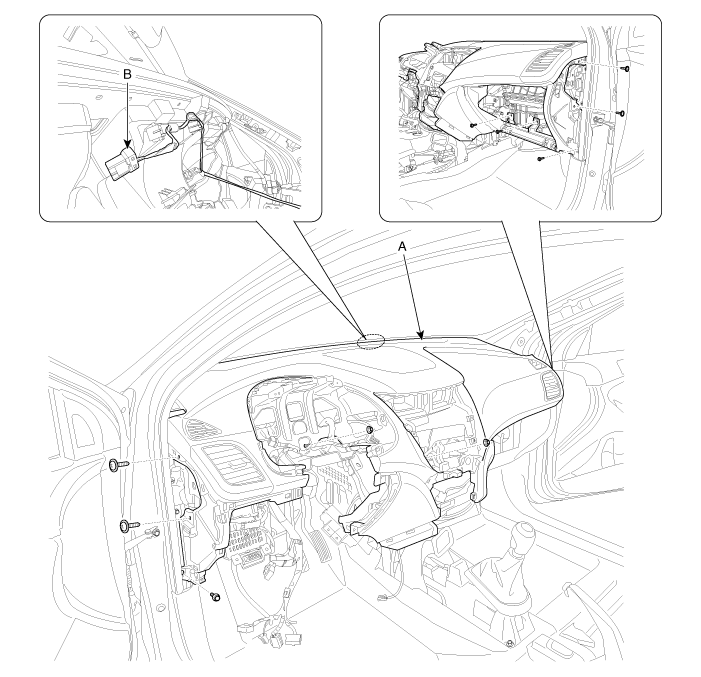

After loosening the mounting bolts, nuts, screws, then remove the main crash pad assembly (A).
Remove the photo sensor wiring (B).
Installation is the reverse of removal.
Make sure the crash pad fits onto the guide pins correctly
Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
Enter the anti- theft code for the radio, then enter the customer`s radio station presets.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Remove the following items.
Front seat
(Refer to the BD group – “Front Seat”)
Floor Console assembly
(Refer to the BD group - "Console")
Cowl top cover
(Refer to the BD group - "Cowl Top Cover")
Front door scuff trim
(Refer to the BD group - "Interior Trim")
Main crash pad
Disconnect the blower unit connectors.
(Refer to the HA group - "Air conditioning system, Heater, Blower")
Disconnect the wiring connector (A).
Disconnect the connectors (A).
Disconnect the airbag connector (A).
Disconnect the connectors (A) and then mounting clips in front pillar.

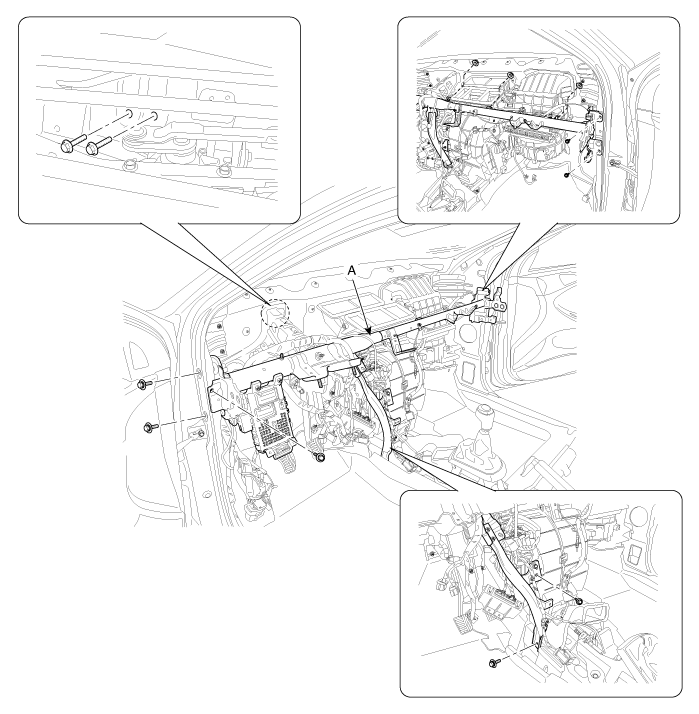

After loosening the mounting bolts and nuts, then remove the cowl cross bar (A).
Installation is the reverse of removal.
Replace any damaged clips.
Make sure the connectors are plugged in properly.
