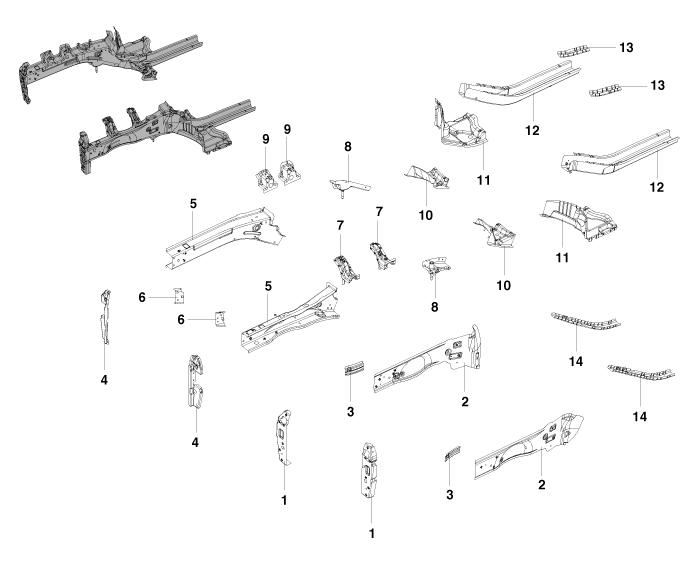

1

Carrier mounting bracket

8

Cross member mounting front support

2

Front side outer member

9

Engine mounting bracket

3

Front side member outer front reinforcement

10

Cross member mounting rear reinforcement

4

Front side member front gusset

11

Front side member rear lower extension

5

Front side inner member

12

Front side rear lower member

6

Front side member inner front reinforcement

13

Front side member rear lower outer reinforcement

7

Battery tray leg bracket

14

Front side rear upper reinforcement
