Hood hinge mounting hole (Ø11)
Fender apron upper member tooling
hole (Ø6.6)
Front shock absorber cover panel
tooling hole (Ø10)
Roof panel front corner
Front pillar outer panel corner
| | |

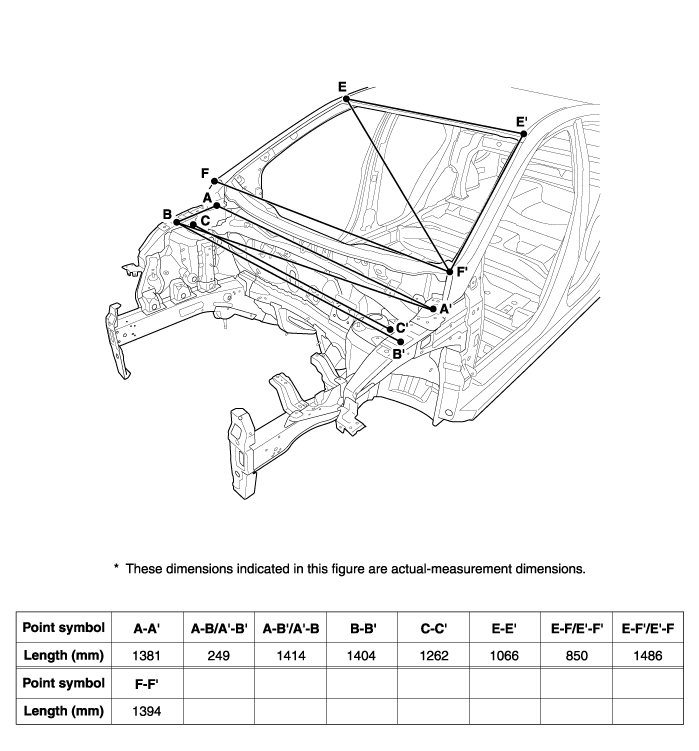

Hood hinge mounting hole (Ø11) | Fender apron upper member tooling hole (Ø6.6) | Front shock absorber cover panel tooling hole (Ø10) |
| | |
Roof panel front corner | Front pillar outer panel corner |
| |  |

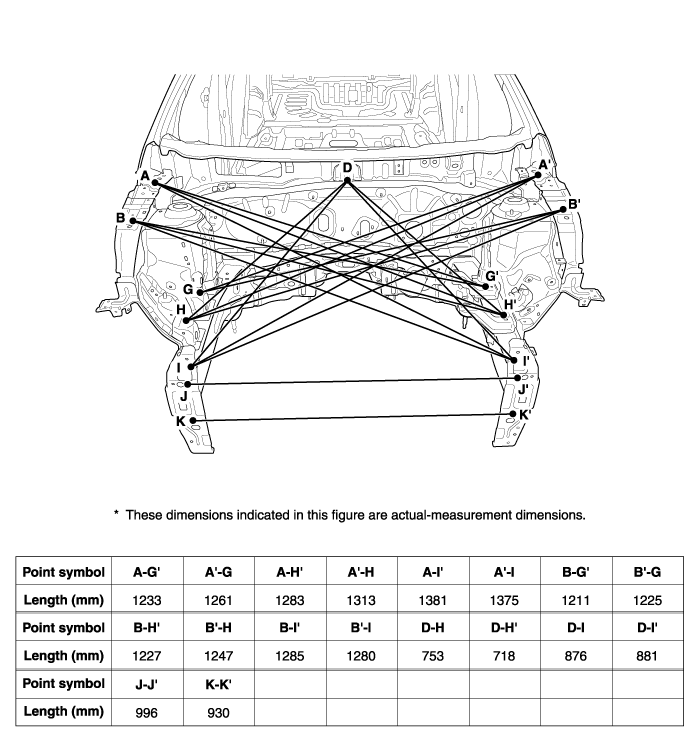

Hood hinge mounting hole (Ø11) | Fender apron upper member tooling hole (Ø6.6) | Cowl under cover mounting side bracket hole (Ø6.6) |
 |  |  |

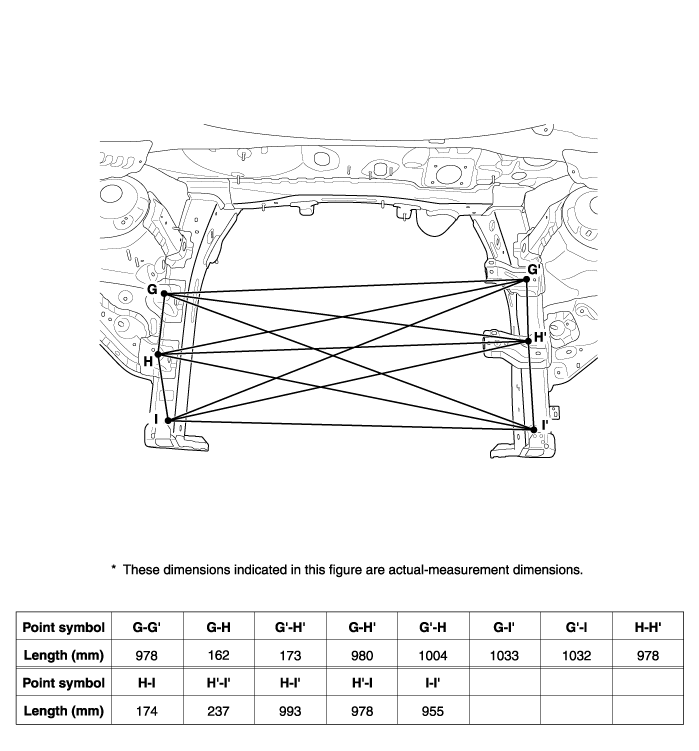

Engine mounting bracket hole (Ø11) | Battery tray leg bracket hole (Ø12) | Engine mounting bracket hole (Ø11) |
 |  |  |
Battery tray leg bracket tooling hole (Ø15) | Front side member tooling hole (Ø9) | Front side member tooling hole (Ø6.6) |
 |  | |
Front end module mounting hole (Ø9) | Front end module mounting hole (Ø9) |
| | |
Engine mounting bracket hole (Ø11) | Battery tray leg bracket tooling hole (Ø12) | Engine mounting bracket hole (Ø11) |
| | |
Battery tray leg bracket tooling hole (Ø15) | Front side member tooling hole (Ø9) | Front side member tooling hole (Ø6.6) |
| | |
Hood hinge mounting hole (Ø11) | Fender apron upper member tooling hole (Ø6.6) | Front shock absorber cover panel tooling hole (Ø10) |
| | |
Roof panel front corner | Front pillar outer panel corner |
| |  |
Hood hinge mounting hole (Ø11) | Fender apron upper member tooling hole (Ø6.6) | Cowl under cover mounting side bracket hole (Ø6.6) |
| | |
Engine mounting bracket hole (Ø11) | Battery tray leg bracket hole (Ø12) | Engine mounting bracket hole (Ø11) |
| | |
Battery tray leg bracket tooling hole (Ø15) | Front side member tooling hole (Ø9) | Front side member tooling hole (Ø6.6) |
| | |
Front end module mounting hole (Ø9) | Front end module mounting hole (Ø9) |
| | |
Engine mounting bracket hole (Ø11) | Battery tray leg bracket tooling hole (Ø12) | Engine mounting bracket hole (Ø11) |
| | |
Battery tray leg bracket tooling hole (Ø15) | Front side member tooling hole (Ø9) | Front side member tooling hole (Ø6.6) |
