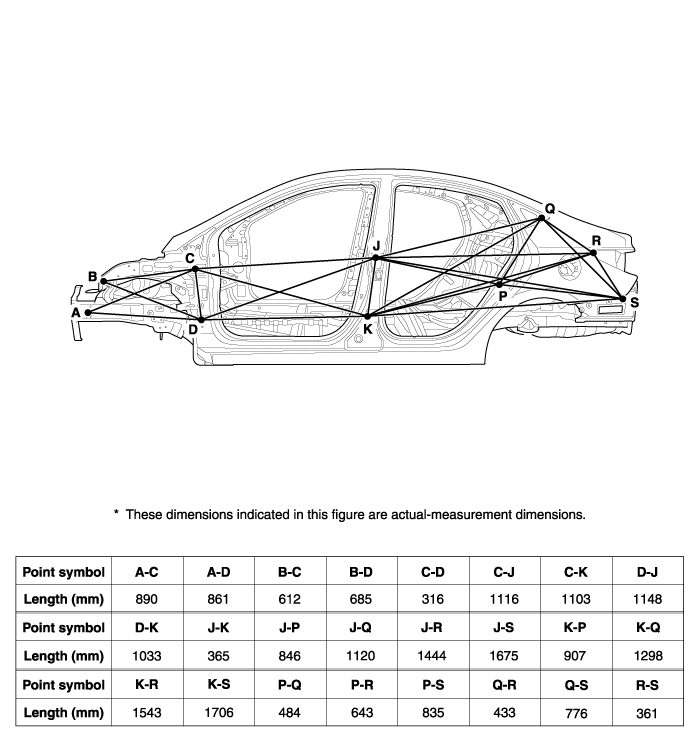

Side Body A ( 4Door )


Front side member tooling hole (Ø12)	Fender apron upper reinforcement tooling hole (Ø7)	Front door upper hinge mounting hole (Ø13)

Front door lower hinge mounting hole (Ø13)	Rear door upper hinge mounting hole (Ø13)	Rear door lower hinge mounting hole (Ø13)

Rear door switch mounting hole (Ø9)	Quarter fixed garnish mounting hole (Ø7)	Rear combination lamp housing mounting hole (Ø6)

Rear bumper mounting hole (8.5X8.5)

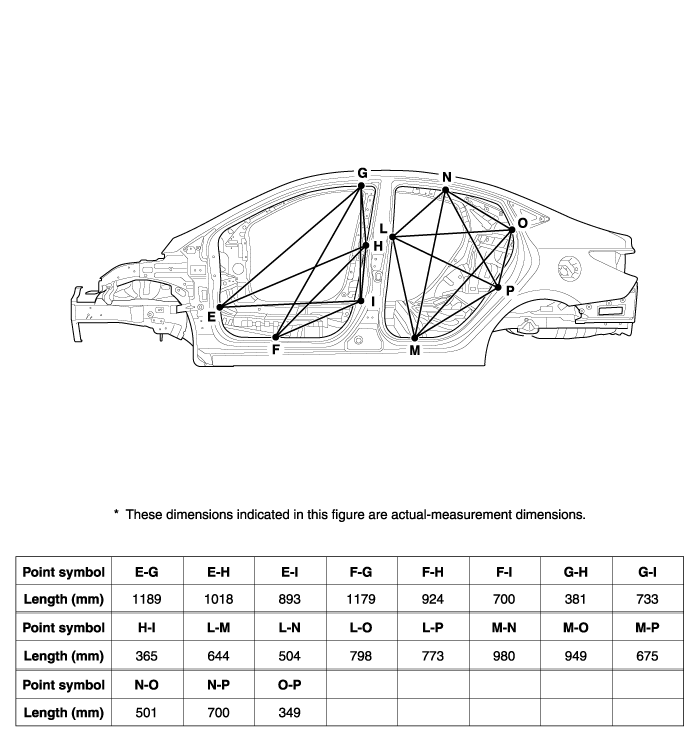

Side Body B ( 4Door )


Side outer panel notch	Side outer panel notch	Side outer panel notch

Side outer panel notch	Front door switch mounting hole (Ø9)	Side outer panel notch

Side outer panel notch	Side outer panel notch	Side outer panel notch

Rear door switch mounting hole (Ø9)

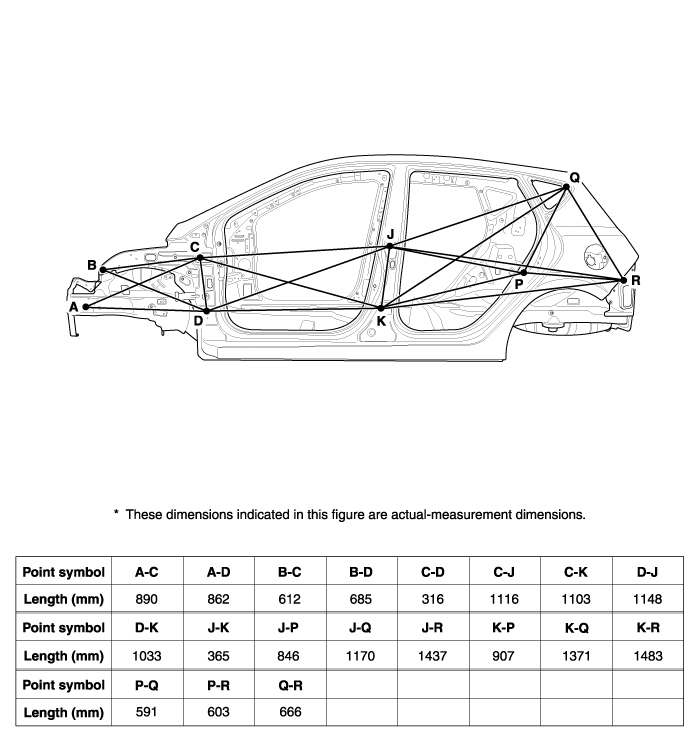

Side Body C ( 5Door )


Front side member tooling hole (Ø12)	Fender apron upper reinforcement tooling hole (Ø7)	Front door upper hinge mounting hole (Ø13)

Front door lower hinge mounting hole (Ø13)	Rear door upper hinge mounting hole (Ø13)	Rear door lower hinge mounting hole (Ø13)

Rear door switch mounting hole (Ø9)	Quarter fixed garnish mounting notch	Rear bumper mounting hole (8.5X8.5)

Side Body D ( 5Door )


Side outer panel notch	Side outer panel notch	Side outer panel notch

Side outer panel notch	Front door switch mounting hole (Ø9)	Side outer panel notch

Side outer panel notch	Side outer panel notch	Side outer panel notch

Rear door switch mounting hole (Ø9)
