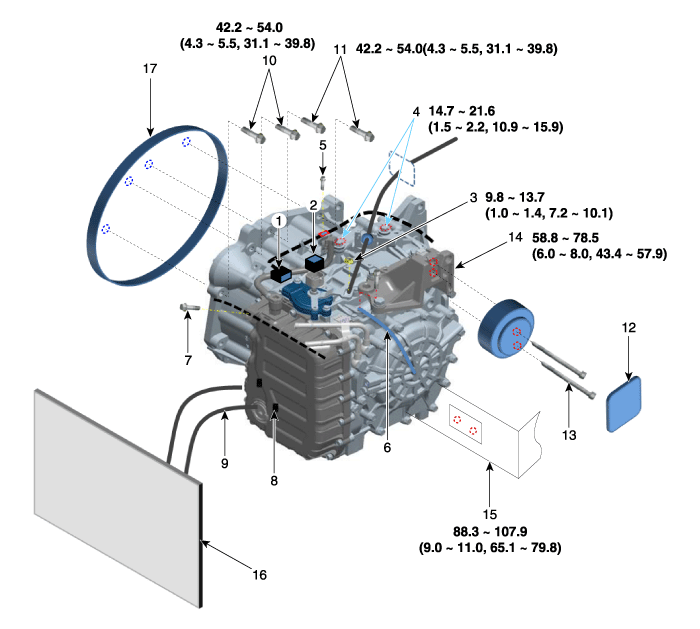

1. Inhibitor switch connector

2. Solenoid valve connector

3. Shift cable mounting nut

4. Shift cable bracket mounting bolt

5. Wiring mounting bracket bolt

6. Ground line

7. Wiring mounting bolt

8. ATF cooler hose clamp

9. ATF cooler hose

10. Stater mounting bolt

11. Automatic transaxle upper mounting bolt

12. Support bracket mounting cover

13. Support bracket mounting bolt

14. Automatic transaxle support bracket

15. Subframe assembly

16. ATF cooler(radiator)

17. Engine assembly

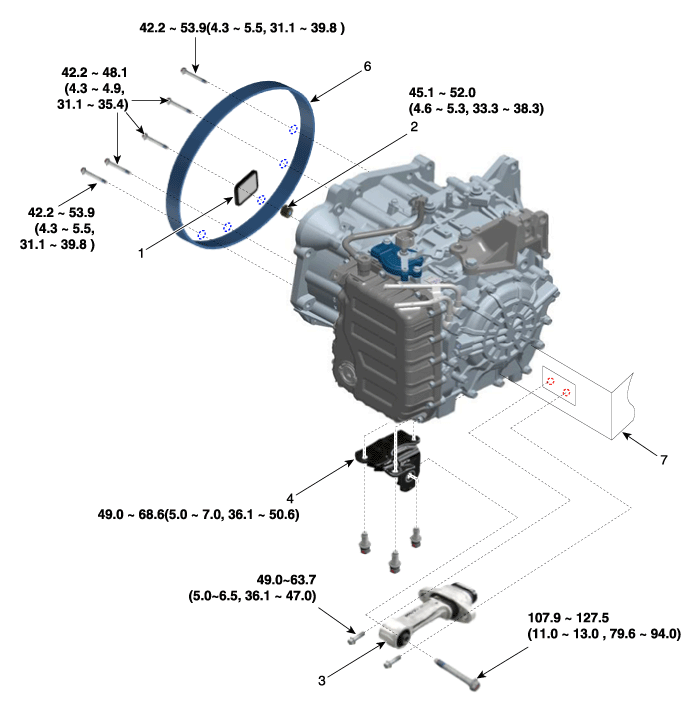

1. Dust cover

2. Torque convertor mounting bolt

3. Roll load bracket

4. Roll load support bracket

5. Automatic transaxle lower mounting bolt

6. Engine assembly

7. Subframe assembly

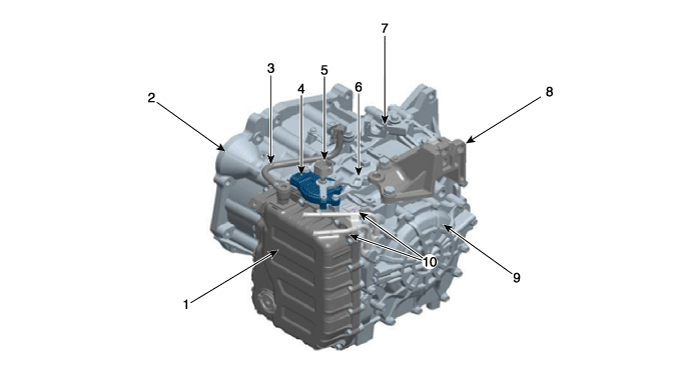

1. Valve body cover

2. Automatic transaxle housing

3. Air breather hose

4. Inhibitor switch

5. Solenoid valve connector

6. Manual control lever

7. Shift cable bracket

8. Automatic transaxle mounting support bracket

9. Rear cover

10. ATF cooler tube
