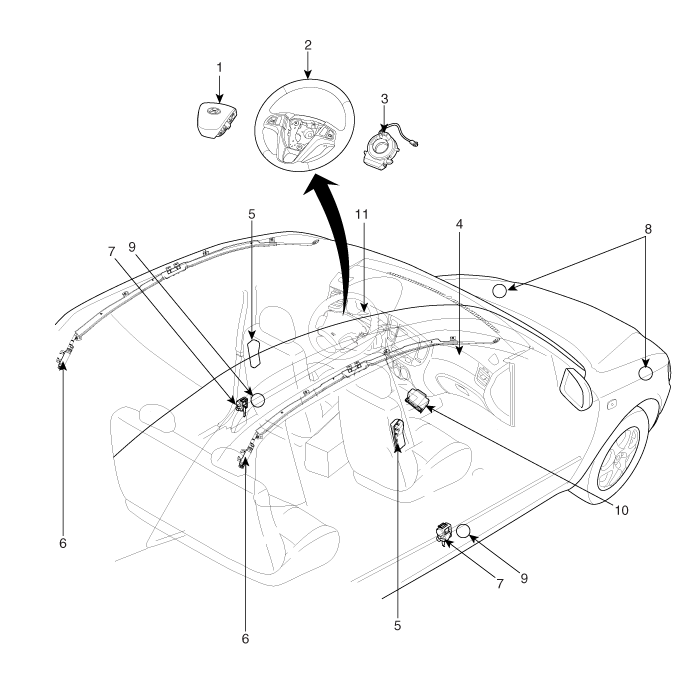

Components

1. Driver Airbag (DAB)

2. Steering Wheel

3. Clock Spring

4. Passenger Airbag (PAB)

5. Side Airbag (SAB)

6. Curtain Airbag (CAB)

7. Seat Belt Pretensioner (BPT)

8. Front Impact Sensor (FIS)

9. Side Impact Sensor (SIS)

10. Supplemental Restraint System Control Module(SRSCM)

11. Airbag Warning Lamp

Components Location
Supplemental Restraint System Control Module (SRSCM)

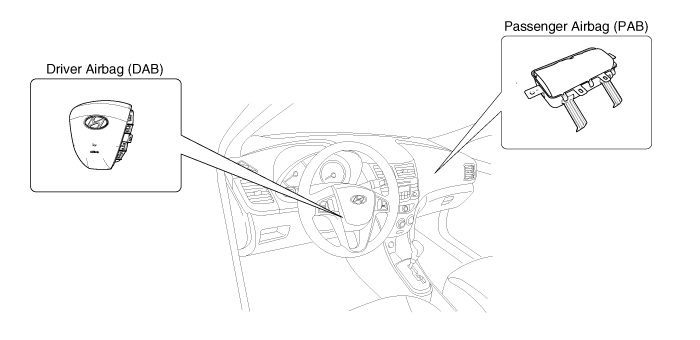

Driver Airbag (DAB) / Passenger Airbag (PAB)
Side Airbag (SAB)
Curtain Airbag (CAB)
Front Impact Sensor (FIS)

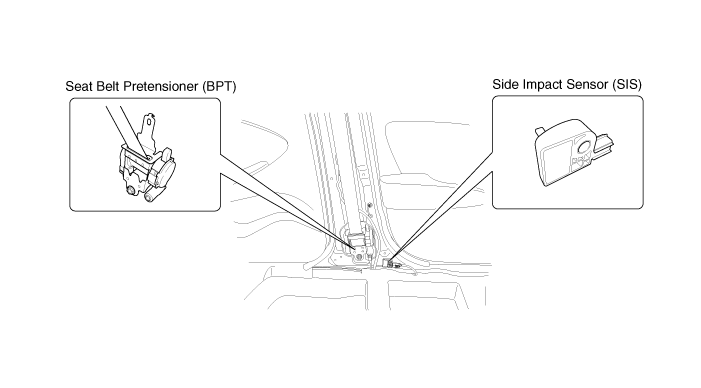

Side Impact Sensor (SIS)/ Seat Belt Pretensioner (BPT)
