Items | Specification | ||
Ignition coil | Primary resistance | 0.7 ± 15 % (Ω) | |
Secondary resistance | 5.9 (kΩ) | ||
Spark plugs | Type | Unleaded | LZKR6B-10E, RER8MC, ELR9QC10 |
Gap | Unleaded | 1.0 ~ 1.1 mm (0.0394 ~ 0.0433in.) | |
Items | Specification | ||
Starter | Rated voltage | 12V, 0.9kW | |
No. of pinion teeth | 9 | ||
No-load characteristics | Voltage | 11.5V | |
Ampere | 90A, MAX | ||
Speed | 2,800rpm, MIN | ||
Items | Specification | |
Alternator | Rated voltage | 13.5V, 90A |
Speed in use | 1,000 ~ 18,000rpm | |
Voltage regulator | IC Regulator built-in type | |
Regulator setting voltage | 14.55 ± 0.2V | |
Temperature compensation | -7 ± 3mV / °C | |

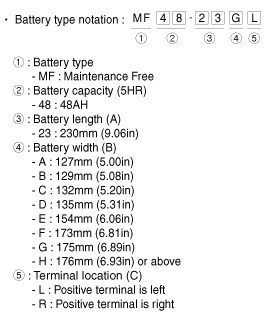

Battery | Type | 48 - 23 GL |
Cold cranking amperage [at -18°C (-0.4°F)] | 550A | |
Reserve capacity | 92min | |
Charge acceptance | 19A | |
Capacity (20HR) | 60AH | |
Specific gravity [at 25°C(77°F)] | 1.280 ± 0.01 | |
COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C(80.1°F).
