LINE NO. | PIN NAME | CURRENT 12V (AMPS) | VOLTAGE RANGE (VOLTS) | MIN. SHUNT RESISTANCE (OHMS) |
11 | ESC SW | < 10m | 0 -18 | 500 K |
15 | PB SW | < 10m | 0 - 18 | 500 K |
20 | WP_FL | < 30m | 0 - 18 | 500 K |
21 | WS_FL | < 16.8m | 0 - 18 | 500 K |
22 | WP_FR | < 30m | 0 - 18 | 500 K |
23 | WS_FR | < 16.8m | 0 - 18 | 500 K |
24 | WP_RL | < 30m | 0 - 18 | 500 K |
25 | WS_RL | <16.8m | 0 - 18 | 500 K |
26 | WP_RR | < 30m | 0 - 18 | 500 K |
27 | WS_RR | < 16.8 | 0 - 18 | 500 K |
30 | IGN | < 50m | 0 - 18 | 500 K |
31 | BAT1 | < 40 | 0 - 18 | 500 K |
32 | BAT2 | < 110 (RUSH) | 0 - 18 | 500 K |
33 | PGND | < 110 (RUSH) | 0 - 18 | 500 K |
34 | GND | < 40 | 0 - 18 | 500 K |
37 | BLS | < 10m | 0 - 18 | 500 K |
38 | BS | < 10m | 0 - 18 | 500 K |
41 | FR_OUT | < 16m | 0 - 18 | 500 K |
42 | RR_OUT | < 16m | 0 - 18 | 500 K |
43 | CAN_H | < 30m | 0 - 18 | 500 K |
44 | CAN_L | < 30m | 0 - 18 | 500 K |
50 | STG A | < 15m | 0 - 18 | 500 K |
51 | STG B | <15m | 0 - 18 | 500 K |
52 | STG Z | < 15m | 0 - 18 | 500 K |
53 | CSP | < 250m | 0 - 18 | 500 K |
54 | CAN_SEN_H | < 30m | 0 - 18 | 500 K |
55 | CAN_SEN_L | < 30m | 0 - 18 | 500 K |
56 | CS_GND | < 250m | 0 - 18 | 500 K |
61 | ESS RSM | < 10m | 0 - 18 | 500 K |
63 | ESS RELAY | < 200m | 0 - 18 | 500 K |
64 | HAZARD SW | < 10m | 0 - 18 | 500 K |

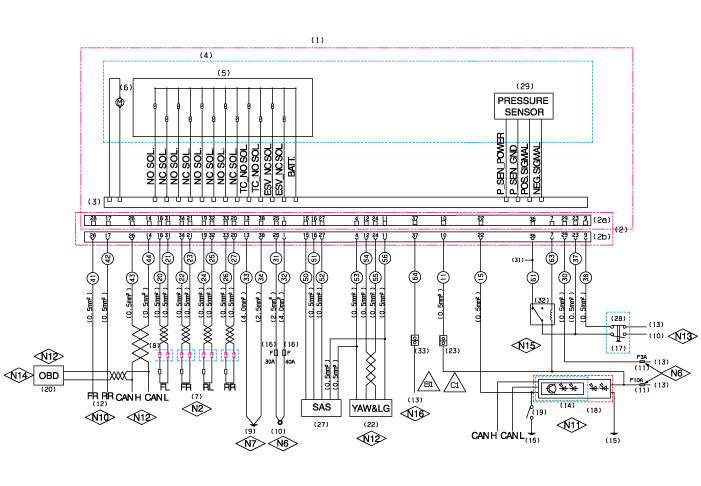

NO. | Designation |
(1) | HU+ECU (Integrated) |
(2) | ECU CONNECTOR |
a) ECU SIDE | |
b) HARNESS SIDE | |
(3) | ECU CONNECT TO HU |
(4) | HU |
(5) | SOLENOIDS |
(6) | MOTOR |
(7) | SENSOR |
(8) | SENSOR CONNECTOR |
(9) | GROUND CHASSIS |
(10) | POS. BATTERY |
(11) | FUSE |
(12) | SPEED OUT |
(13) | POS. BATTERY |
(14) | W/LAMP CIRCUIT |
(15) | GROUND |
(16) | FUSIBLE LINK |
(17) | BRAKE LIGHT SWITCH |
(18) | LAMP CLUSTER BY CAN |
(19) | PARKING BRAKE SWITCH |
(20) | OBD CONNECTOR |
(22) | YAW&LG SENSOR |
(23) | ESC SW |
(27) | STEERING ANGLE SENSOR |
(28) | BRAKE SWITCH (NC) |
(29) | PRESSURE SENSOR |
(31) | BRAKE LIGHT |
(32) | ESS RELAY |
(33) | HAZARD SWITCH (NC) |

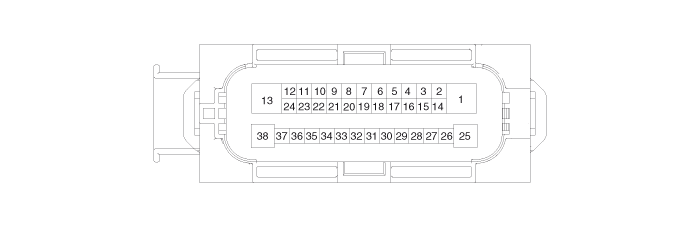

Connector Terminal | |
No | Description |
29 | IGNITION1(+) |
25 | POS. BATTERY 1.(SOLENOID) |
1 | POS. BATTERY 2.(MOTOR) |
38 | GROUND |
13 | PUMP MOTOR GROUND |
11 | SENSOR GROUND |
4 | SENSOR POWER |
23 | BRAKE LIGHT SWITCH |
9 | BRAKE SWITCH |
22 | PARKING BRAKE SWITCH |
28 | SENSOR FRONT RIGHT OUTPUT |
10 | ESP ON/OFF SWITCH |
14 | CAN BUS LINE(LOW) |
26 | CAN BUS LINE(HIGH) |
18 | SENSOR FRONT LEFT POWER |
34 | SENSOR FRONT RIGHT POWER |
19 | SENSOR REAR LEFT POWER |
33 | SENSOR REAR RIGHT POWER |
31 | SENSOR FRONT LEFT SIGNAL |
21 | SENSOR FRONT RIGHT SIGNAL |
32 | SENSOR REAR LEFT SIGNAL |
20 | SENSOR REAR RIGHT SIGNAL |
12 | CAN SENSOR LINE (HIGH) |
24 | CAN SENSOR LINE (LOW) |
15 | STEERING ANGLE SENSOR PHASE A |
16 | STEERING ANGLE SENSOR PHASE B |
27 | STEERING ANGLE SENSOR PHASE Z |
7 | ESS BRAKE RELAY DIRVE |
17 | SENSOR REAR RIGHT OUTPUT |
36 | ESS RELAY STATE MONITORING |
37 | HAZARD SWITCH |
