3.
If measured value exceeds the standard value, replace the wheel.
Tighten the hub nuts as follows.
Tightening torque:
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)
When using an impact gun, final tightening torque should be checked using a torque wrench.
Jack up the vehicle.

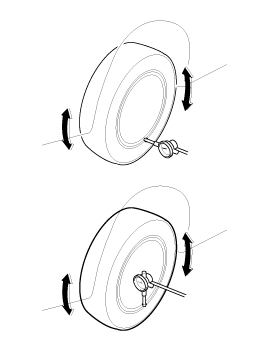

Measure the wheel Run-out by using a dial indicator as illustration below.
Run-out | Aluminum | ||
Radial mm(in.) | Below 0.3(0.012) | ||
Lateral mm(in.) | Below 0.3(0.012) |
If measured value exceeds the standard value, replace the wheel.
