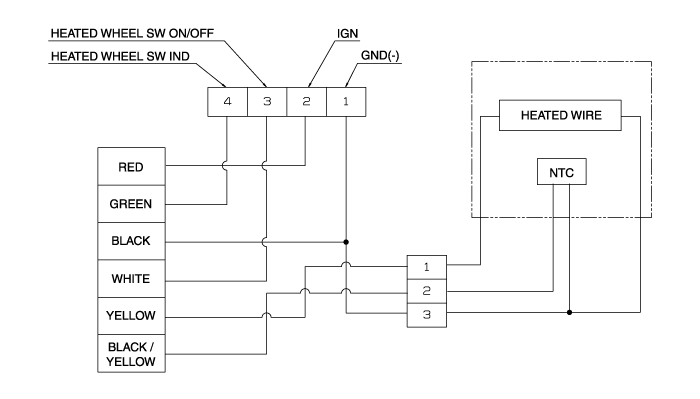

Schmetic Diagram

Terminal Function

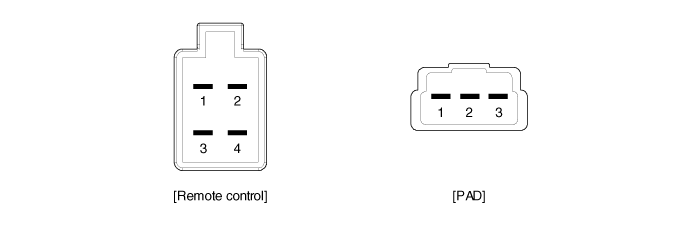

Housing	Pin	Function	Wire Color
Pad	1	HEATER	Yellow
	2	NTC	Black / Yellow
	3	GND	Back
Remote Control	1	GND	Back
	2	BAT	Red
	3	SWITCH	White
	4	LED	Green
