10414404

Components

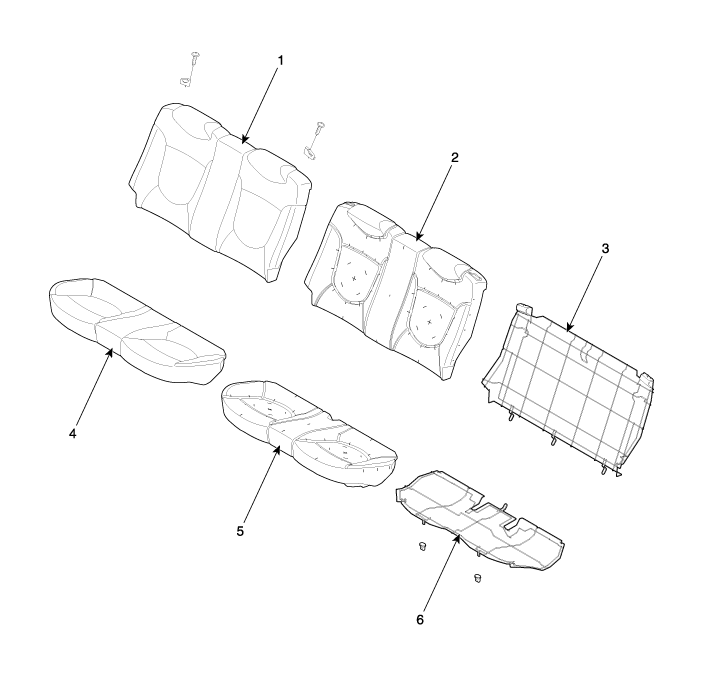

[ Banch seat type ]

1. Rear seat back cover

2. Rear seat back pad

3. Rear seat back frame

4. Rear seat cushion cover

5. Rear seat cushion pad

6. Rear seat cushion frame

[ 6:4 Back folding type ]

1. Headrest [RH]

2. Rear seat back cover [RH]

3. Rear seat back frame assembly [RH]

4. Rear back cover [RH]

5. Headrest [Center]

6. Headrest [LH]

7. Rear seat back cover [LH]

8. Rear seat back frame assembly [LH]

9. Rear back cover [LH]

10. Rear seat cushion cover
