Special Service Tools

Tools

(Number and name)

Illustration

Use

09200-3N000

Engine support fixture

(Beam)

Removal and installation of the transaxle.

Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000).

※Permit operating with 09200-38001.

※Refer to the engine support fixture assembly drawing below.

09200-2S000

Engine support fixture

(Supporter)

Removal and installation of the transaxle.

Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000).

※Refer to the engine support fixture assembly drawing below.

09452-1P100

Oil seal installer

Installation of differential case, housing oil seal

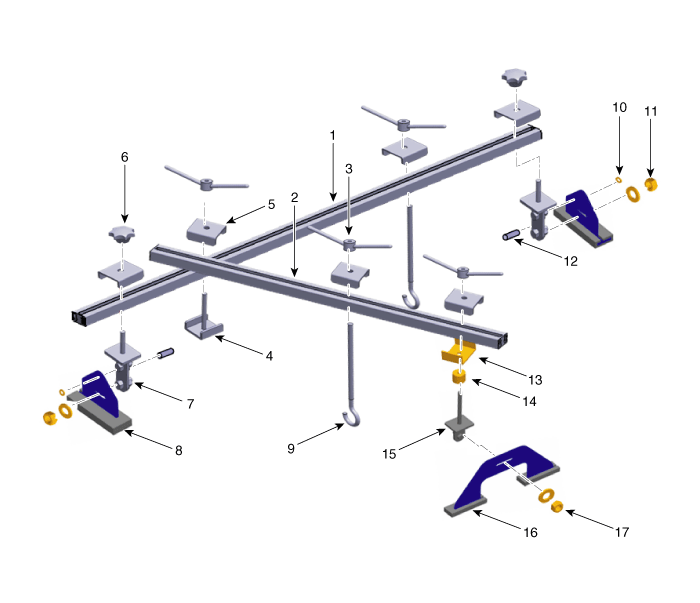

※ Engine support fixture special tool assembly drawing

1. 09200-3N000(Main bar)

2. 09200-3N000(Sub bar)

3. 09200-3N000(Handle)

4. 09200-3N000(Stopper)

5. 09200-3N000(Stopper)

6. 09200-3N000(Knobe)

7. 09200-3N000(Adapter)

8. 09200-2S000(Supporter)

9. 09200-3N000(Hanger)

10. 09200-3N000(Clip)

11. 09200-3N000(Nut)

12. 09200-3N000(Pin)

13. 09200-2S000(Stopper)

14. 09200-2S000(Spacer)

15. 09200-2S000(Adapter)

16. 09200-2S000(Supporter)

17. 09200-2S000(Nut)
