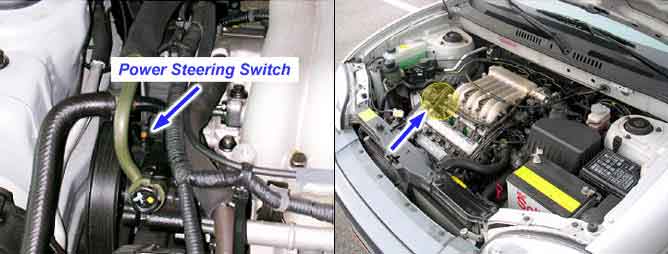

Component Location
DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● Power steering switch check

● Open or short circuit

● Contact resistance in connectors

● Defective power steering switch

Enable Conditions

● No vehicle speed error

● Coolant temperature>75℃(167℉)

● Power steering switch is ON

Threshold Value

● Power steering is ON with vehicle speed >100km/h & time > 25.5 sec.

Diagnostic Time

● 0.1 sec.

Schematic Diagram
note
