3.
Monitor "OD SOLENOID DUTY" is 0%
1)
Specification : OD SOLENOID DUTY 0.0 %

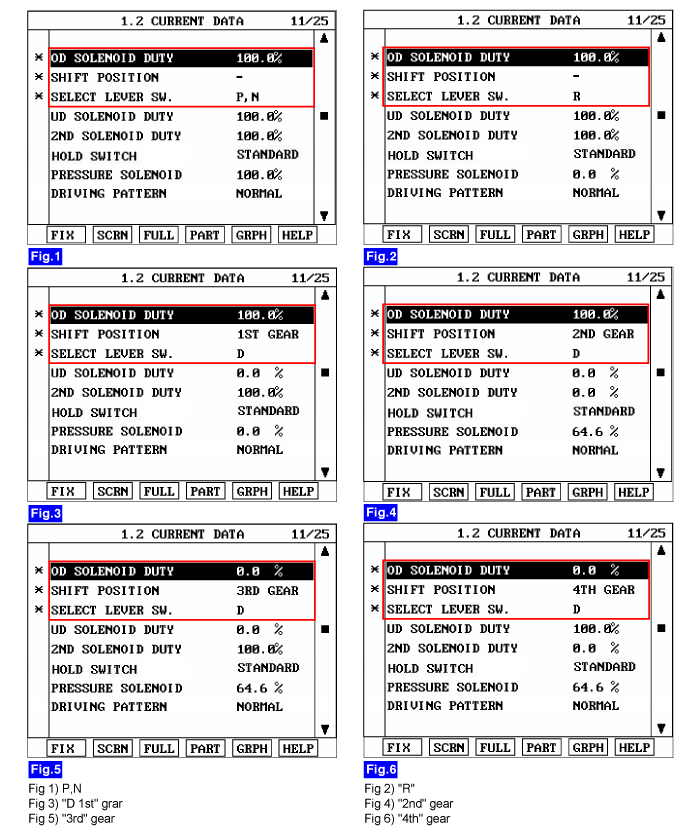

After lifting a car and Driving with 3rd gear
After connecting Scantool and select LR, UD, 2ND, OD SOLENOID DUTY service data
Monitor "OD SOLENOID DUTY" is 0%
Specification : OD SOLENOID DUTY 0.0 %
Is OD SOLENOID DUTY display near the specified value?
YES
Go to "Terminal and Connector Inspection" of the W/Harness Inspection procedure
NO
Go to "Power circuit inspection" of the W/Harness Inspection procedure
