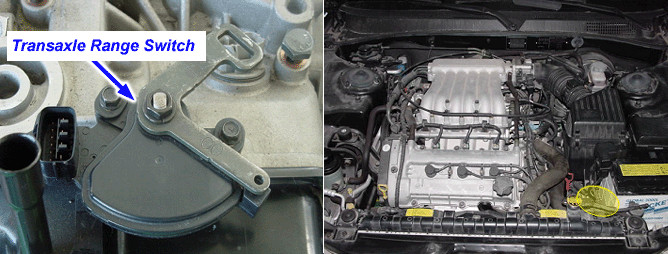

Component Location
Function

The Transaxle Range Switch sends the shift lever position information to the TCM using a 12V (battery voltage) signal. When the shift lever is in the D (Drive) position the output signal of Tansaxle Range Switch is 12V and in all other positions the voltage is 0V. The TCM judges the shift lever position by reading all signals, for the Transaxle Range Switch, simultaneously.

DTC Description

The TCM sets this code when the Transaxle Range Switch outputs multiple signals for more than 30 seconds.

DTC Detecting Condition

Item

Detecting Condition & Limp Home

Possible Cause

DTC Strategy

● Rationality circuit continuity

● Open or short in INHIBITOR SWITCH SW

● Defective INHIBITOR SWITCH

● Defective TCM

Enable Conditions

● None

Threshold Value

● Multiple signal

Diagnostic Time

● More than 30sec

Fail Safe

● Recognition as privious signal

● When you can select N RANGE to D RANGE , more than 2 signal, recognize N RANGE.

● When you can select D RANGE to N RANGE , have not signal ,recognize D RANGE.

Schematic Diagram
