3.

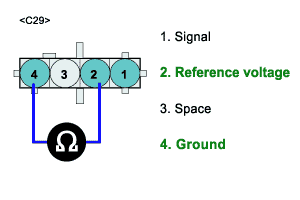

Measure resistence between terminals 4 and 2 of the MAP sesor connectorC29.
1)
Specification : Approxat 30 kΩ at 20°C(68°F)
IG KEY : OFF , Engine : OFF
Disconnect MAP sensor connector(C29).
Measure resistence between terminals 4 and 2 of the MAP sesor connectorC29.
Specification : Approxat 30 kΩ at 20°C(68°F)
Connect MAP sensor connector(C29).
Remove MAP sensor and IG KEY: ON
Using s hand-held vacuum pump, apply vacuum and measure the "MAP SENSOR" parameter on scantool.
Specification :
Applied Vacuum | Output Voltage |
10kPa(100mbar) | 0.06V |
15kPa(150mbar) | 0.25V |
40kPa(400mbar) | 1.3V |
80kPa(800mbar) | 3V |
120kPa(1200mbar) | 4.8V |
Is the sensor’s signal near the spacified value?
YES
MAP sensor is OK.
Possibility of ECM fail
Test with a new ECM and check for proper operation. If problem is corrected replace ECM and go to "Verification of Vehicle Repair" procedure.
NO
Test with a new MAP sensor and check for proper operation. If problem is corrected, replace MAP sensor.
And go to "Verification of Vehicle Repair" procedure.
