3.
Measure resistance between terminal 1 and 2 of the injector connector.
1)
[Specification] 13 ~ 16Ω at 20°C(68°F)
IG KEY : OFF , Engine : OFF

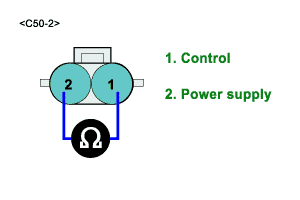

Disconnect injector connectorC50-2.
Measure resistance between terminal 1 and 2 of the injector connector.
[Specification] 13 ~ 16Ω at 20°C(68°F)
Is the resistance at the standard value?
YES
Injector is O.K.
Possibility of defective ECM.Temporarily test with a new ECM and check for proper operation.
If problem is corrected, replace ECM and go to "Verification of Vehicle Repair" procedure.
NO
Test with a new injector and check for proper operation.If problem is corrected, replace it.
And go to "Verification of Vehicle Repair" procedure.
