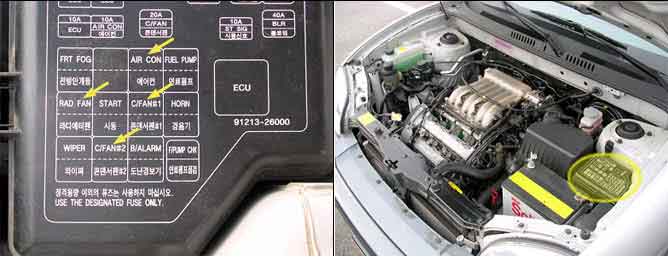

Component Location
Description
1. General Description

The ECM controls cooling fan speed (low,medium, high) based on engine coolant temperature, vehicle speed, and A/C switch position. Fans will default to high-speed operation upon ECT or VSS failure.

2. DTC Description

ECM sets DTC P1624 if the ECM detects that the fan relay control line is open, short to ground or battery.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● Driver stage check

● Contact resistance in connectors

● Open or short circuit

● Malfunctioning fan relay

Enable Conditions

● Battery voltage > 10V

Threshold Value

● Open or short to ground

● Short to battery

Diagnostic Time

● 10 seconds
