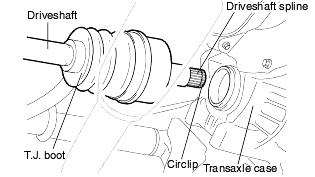

Coat gear oil on the driveshaft splines and transaxle case-sliding surface.

Before installing the driveshaft, set the opening side of the circlip facing downward.

Assemble the dust cover, the hub, the brake disc and the wheel bearing to the knuckle.

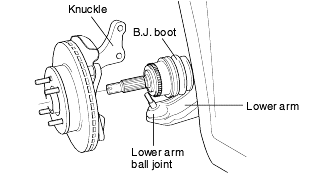

Install the B.J. into the knuckle.

In practice, the knuckle should be installed in the lower arm the moment the B.J. is installed in the knuckle. Be careful not to damage theboot.

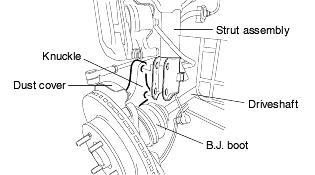

Install the knuckle in the strut assembly with the tightening torque, 100~120 Nm (1000~1200 kg·cm, 74~89 lb·ft).

Install the lower arm in the knuckle with the tightening torque 100~120 Nm (1000~1200 kg·cm, 74~89 lb·ft).

After the installation, check on the driveshaft for stability by hand.

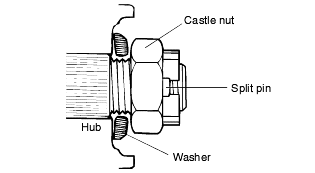

After installing the washer with convex surface outward, install the castle nut and the split pin.

Install the wheel and tire.
