2.
After connecting Scantool and monitor the "ATF SENSOR "parameter on the Scantool data list.
1)
Test Condition : Engine "ON"
2)
Specification : Gradually rises to 70 ~ 90 ℃
Start the engine and warm up the engine properly
After connecting Scantool and monitor the "ATF SENSOR "parameter on the Scantool data list.
Test Condition : Engine "ON"
Specification : Gradually rises to 70 ~ 90 ℃
Is fluid temperature sensor display near the specified value?
YES
Go to "Terminal and Connector Inspection" of the W/Harness Inspection procedure

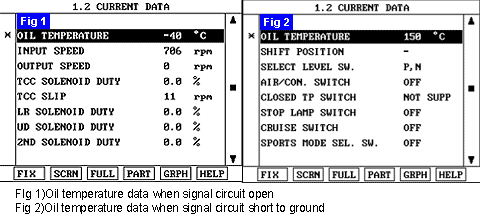

NO (Data value is fixed -40℃)
Go to "Inspection / Repair" procedure
