3.

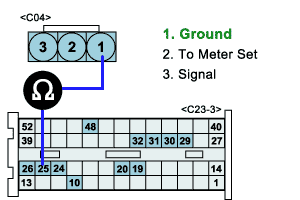

Measure resistance between terminals 1 of the sensor harness connector(C04) and ECM(25/C23-3)
1)
Specification : Approx. 0Ω
Ignition "OFF" & Engine "OFF"
Disconnect ECTS connector
Measure resistance between terminals 1 of the sensor harness connector(C04) and ECM(25/C23-3)
Specification : Approx. 0Ω
Is resistance display near the specified value?
YES
Go to "Terminal and connector Inspection" procedure
NO
Repair open circuit and go to "Verification of Vehicle Repair" procedure
Ignition "OFF" & Engine "OFF"

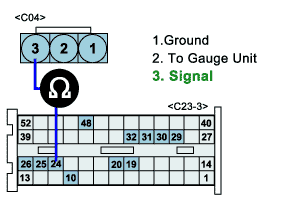

Measure resistance between terminals 3 of the sensor harness connector(C04) and ECM(24/C23-3)
Specification : Approx. 0Ω
Is resistance within specification?
YES
Go to next step.
NO
Repair as necessary and go to "Verification of Vehicle Repair" procedure.
Disconnected ECTS connector and ECM
Ignition "ON" & Engine "OFF"

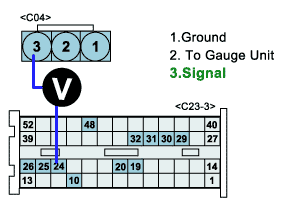

Measure voltage between terminals 3 of the sensor harness connector(C04) and ECM(24/C23-3)
Specification : Approx. 0V
Is voltage within specification?
YES
Go to "Terminal and Connector Inspection" procedure.
NO
Repair as necessary and go to "Verification of Vehicle Repair" procedure.
Many malfunctions in the electrical system are caused by poor harness(s) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Check the following conditions:
Check for damaged harness and terminals: contact resistance, oxidation, bent or broken terminals.
Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection
Use a suitable male pin to ensure that contact in sockets is good. The pin should remain in position when pulled gently.
Has a problem been found?
YES
Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
Go to "Component Inspection" procedure
