Terminal and Connector Inspection
1.

Many malfunctions in the electrical system are caused by poor harness(s) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Check the following conditions:

(1)

Check for damaged harness and terminals: contact resistance, oxidation, bent or broken terminals.

(2)

Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection

note

Use a suitable male pin to ensure that contact in sockets is good. The pin should remain in position when pulled gently.

3.

Has a problem been found?

YES

a.

Repair as necessary and go to "Verification of Vehicle Repair" procedure

NO

a.

Go to "Ground Circuit Inspection" procedure

Ground Circuit inspection
1.

Ignition "OFF"

2.

Disconnect TPS connector

3.

Ignition "ON" & Engine "OFF"

4.

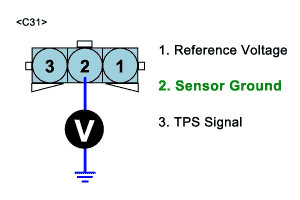

Measure voltage between terminal 2 of the sensor harness connector and chassis ground

1)

Specification : Approx. 0V

5.

Is TPS voltage displayed near the specified value?

YES

a.

Go to step "Signal Circuit Inspection" procedure

NO

a.

Check the ground circuit for an open.

b.

Repair as necessary and go to "Verification of Vehicle Repair" procedure

Signal Circuit Inspection
1.

Ignition "ON" & Engine "OFF"

2.

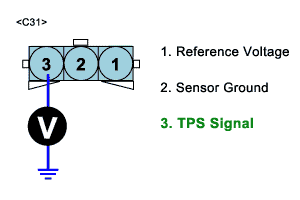

With connector still disconnected, measure voltage between terminal 3 of the sensor harness connector(C31) and chassis ground

1)

Specification : Approx. 5V

3.

Is TPS signal voltage near the specified value?

YES

a.

Go to "Component Inspection" procedure

NO

a.

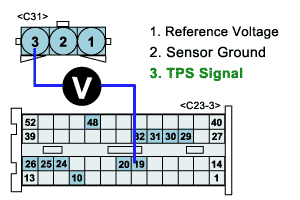

Possibility of open or short to power in signal circuit.

- Specification : 0Ω

- Specification : Approx. 0V

b.

Repair as necessary and go to "Verification of Vehicle Repair" procedure
