Terminal and Connector Inspection
1.

Many malfunctions in the electrical system are caused by poor harness(s) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Check the following conditions:

(1)

Check for damaged harness and terminals: contact resistance, oxidation, bent or broken terminals.

(2)

Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection

note

Use a suitable male pin to ensure that contact in sockets is good. The pin should remain in position when pulled gently.

3.

Has a problem been found?

YES

a.

Repair as necessary and go to "Verification of Vehicle Repair" procedure

NO

a.

Go to "Power Circuit Inspection" procedure

Power Supply Circuit Inspection
1.

Ignition "OFF"

2.

Disconnect CKP sensor connector

3.

Ignition "ON" & Engine "OFF"

4.

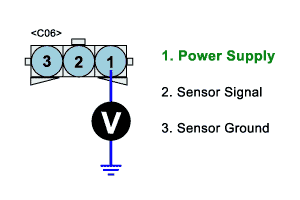

Measure voltage between terminal 1 of the sensor harness connector(C06) and chassis ground

1)

Specification : Approx. B+

5.

Is voltage near the specified value?

YES

a.

Go to "Ground Circuit Inspection" procedure

NO

a.

Check for a open in the power supply circuit between the main relay and the crankshaft position sensor,

b.

Especially check for open or blown 20A FUEL PUMP fuse refer to "Component Circuit"

c.

Repair as necessary and go to "Verification of Vehicle Repair" procedure

Ground Circuit inspection
1.

Ignition "OFF"

2.

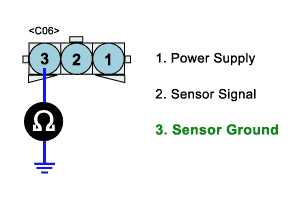

Measure resistance between terminal 3 of the sensor harness connector(C06) and chassis ground

1)

Specification : Approx. 0Ω

3.

Is resistance display near the specified value?

YES

a.

Go to "Signal Circuit Inspection" procedure

NO

a.

Check for an open or short to battery in the ground circuit.

b.

Repair as necessary and go to "Verification of Vehicle Repair" procedure

Signal Circuit Inspection
Check for Open in Signal Harness
1.

Ignition "OFF"

2.

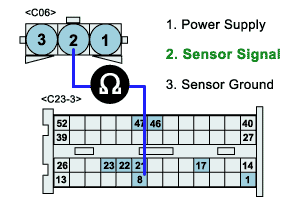

Measure resistance between terminal 2 of sensor harness connector(C06) and ECM(8/C23-3)

1)

Specification : Approx. 0Ω

3.

Is resistance within specification?

YES

a.

Go to next step.

NO

a.

Repair as necessary and go to "Verification of Vehicle Repair" procedure.

Check for Short to Ground in Signal Harness
4.

Ignition "OFF"

5.

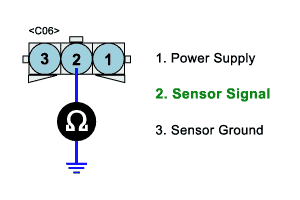

Measure resistance between terminal 2 of sensor harness connector(C06) and chassis ground

1)

Specification : Infinite

6.

Is resistance within specification?

YES

a.

Go to next step.

NO

a.

Repair as necessary and go to "Verification of Vehicle Repair" procedure.

Check for Short to Power in Signal Harness
7.

Ignition "OFF"

8.

Disconnect ECM connector

9.

Ignition "ON" & Engine "OFF"

10.

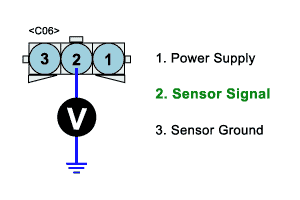

Measure voltage between terminal 2 of sensor harness connector(C06) and chassis ground

1)

Specification : Approx. 0V

11.

Is voltage within specification?

YES

a.

Go to "Component Inspection" procedure

NO

a.

Repair as necessary and go to "Verification of Vehicle Repair" procedure.
