3.

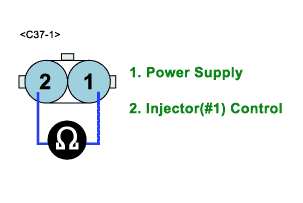

Measure resistance between terminals 1 and 2 of the injector connector(C37-1)(To Injector).
1)
Specification : Approx. 13.8~15.2Ω at 20℃(68℉)
Ignition "OFF"
Disconnect injector connector
Measure resistance between terminals 1 and 2 of the injector connector(C37-1)(To Injector).
Specification : Approx. 13.8~15.2Ω at 20℃(68℉)
Is Injector resistance display within specifications?
YES
Check for intermittent fault. Observe the data parameter for a sudden change while wiggling the wiring and tapping lightly on the suspect component.
Be careful not to damage wires or components during the test.
Repair as necessary and go to "W/Harness Inspection" procedure
NO
Test with a new Injector and check for proper operation. If problem is corrected, replace Injector and go to "Verification of Vehicle Repair" procedure
