3.

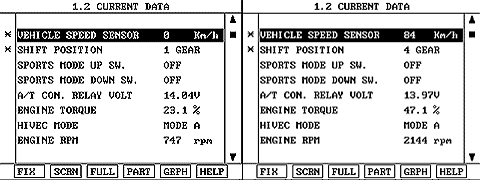

Monitor the “OUTPUT SPEED ” parameter on the Scantool data list.
1)
Test condition : Engine "Start and Drive"
After a repair, it may be necessary to check that fault is properly rectified.
After lifting a car and Driving a speed of over 30 Km/h
After connecting Scantool and Clear DTC
Monitor the “OUTPUT SPEED ” parameter on the Scantool data list.
Test condition : Engine "Start and Drive"
Monitoring for (pending) DTC. Is DTC P0500 set?
YES
Go to the applicable troubleshooting procedure.
NO
System OK
