3.
Select "DIAGNOSTIC TROUBLE CODES" mode and monitor the present trouble codes.
Ignition "OFF" and connect scantool to Data Link Connector(DLC).
Ignition "ON" & Engine "OFF".

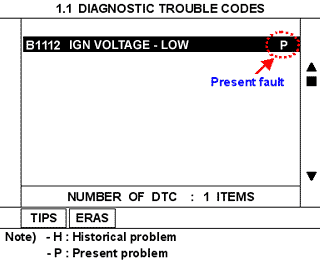

Select "DIAGNOSTIC TROUBLE CODES" mode and monitor the present trouble codes.
Is DTC present problem ?
YES
Go to "W/Harness Inspection" procedure.
NO
Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and SRSCM memory is not cleared yet. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
