1.

Ignition OFF

2.

M54 Electric Magnet Valve Clutch connector : Disconnect.

3.

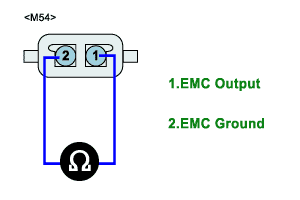

Measure resistance between 1 & 2.

1)

Specification : Approx. 1.8 ~ 2.2 Ω

note

The above value is only for reference. The data from vehicle may differ from it according as various vehicle condition. This inspection is for checking open or short of EMC coil.

4.

Is resistance display near the specified value?

YES

a.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

b.

Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO

a.

Check "EMC coil" for contamination, deterioration, or damage.

b.

Substitute with a known-good "EMC coil" and check for proper operation. If the problem is corrected, replace "EMC coil" and then go to "Verification of Vehicle Repair" procedure.
