Monitor Scantool Data
1.

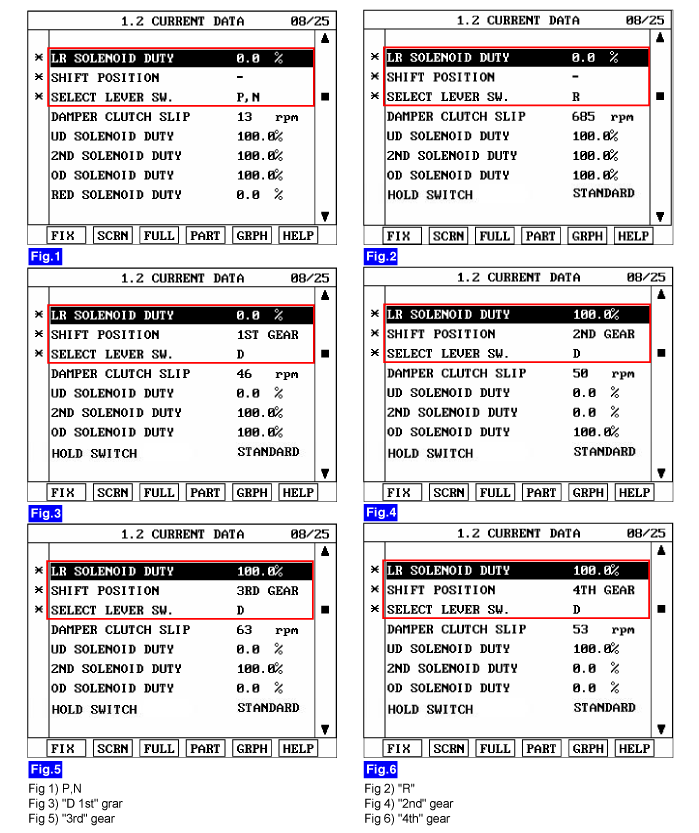

Start the engine , Install Scantool and select LR, UD, 2ND, OD SOLENOID DUTY service data

2.

Select "R" range of shift lever and monitor "LR SOLENOID DUTY" is 0%

1)

Specification : LR SOLENOID DUTY 0.0 %

3.

Is LR SOLENOID DUTY display near the specified value?

YES

a.

Go to "Terminal and Connector Inspection" of the W/Harness Inspection procedure

NO

a.

Go to "Power circuit inspection" of the W/Harness Inspection procedure
